9070T100D1 | TRANSFORMER CONTROL 100VA 240/480V-120V | Square D by Schneider Electric

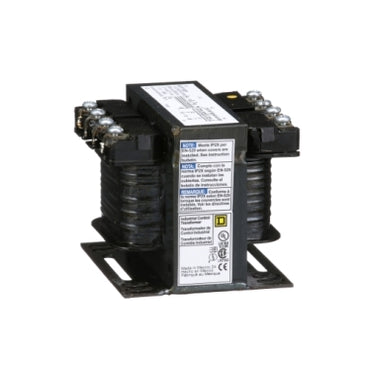

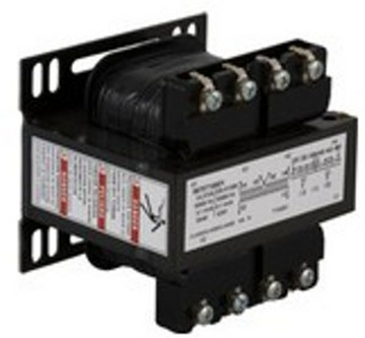

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T100D1
Overview Details for 9070T100D1
TRANSFORMER CONTROL 100VA 240/480V-120V
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 100VA and is 1 phase. This transformer has a 240V x 480V primary voltage and 120V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.Specifications
- Product Type
- Industrial Control Transformer
- Power Rating
- 100 VA
- Type
- T
- Number of Phases
- 1 phase
- Power Rating
- 100 VA
- Temperature Rise
- 55 °C
- Electrical Connection
- Screw clamp terminals
- Height
- 2.89 in (73.41 mm)
- Width
- 3.38 in (85.85 mm)
- Depth
- 3.34 in (84.84 mm)
- Material
- Copper winding
- Fingersafe Cover Compatibility
- FSC1
- Certifications
- UL listed file E61239;CSA file LR37055 guide 184-N-90
- Enclosure Type
- Not rated (open device)
- Insulation Temperature
- 221 °F (105 °C)
- Category
- 16200-9070 T (NOT TF) 50-200VA
- Discount Schedule
- CP8
- GTIN
- 785901904649
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.70 in (14.48 cm)
- Package 1 Width
- 6.30 in (16 cm)
- Package 1 Length
- 7.25 in (18.42 cm)
- Package 1 Weight
- 4.14 lb(US) (1.88 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 450
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 1723.24 lb(US) (781.65 kg)
- Warranty
- 10 Years
