9070T1000D3 | Transformer Control 1000VA 208V-120V | Square D by Schneider Electric

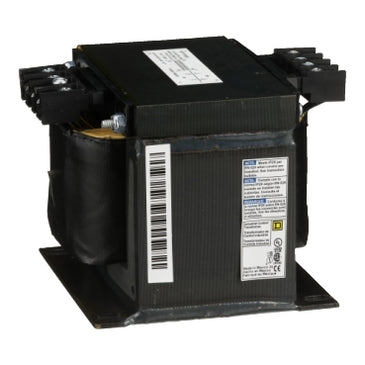

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T1000D3
Overview Details for 9070T1000D3
Transformer Control 1000VA 208V-120V
Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 1000VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 4.51 in (H), 5.25 in (W), 6.3 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.Specifications
- Product Type
- Industrial Control Transformer
- Power Rating
- 1000 VA
- Type
- T
- Number of Phases
- 1 phase
- Power Rating
- 1000 VA UL;1000 VA CSA;1000 VA NOM;630 VA
- Temperature Rise
- 115 °C
- Electrical Connection
- Screw clamp terminals
- Height
- 4.51 in (114.55 mm)
- Width
- 5.25 in (133.35 mm)
- Depth
- 6.3 in (160.02 mm)
- Material
- Copper winding
- Fingersafe Cover Compatibility
- FSC2
- Certifications
- CSA file LR37055 guide 184-N-90;UL listed file E61239
- Enclosure Type
- Not rated (open device)
- Insulation Temperature
- 356 °F (180 °C)
- Category
- 16201-9070 T (NOT TF) 250-2000VA
- Discount Schedule
- CP8
- GTIN
- 785901905882
- Number of Units in Package 1
- 1
- Package 1 Weight
- 21.68 lb(US) (9.834 kg)
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Package 1 Height
- 7.00 in (17.78 cm)
- Package 1 Width
- 8.20 in (20.828 cm)
- Package 1 Length
- 8.50 in (21.59 cm)
- Warranty
- 10 Years
