8911DPSO43V02 | Definite Purpose Starter, 40A, Open, 110V 50 Hz, 120V 60 Hz, 3-Poles, 3-Phase | Square D by Schneider Electric

Square D | 8911DPSO43V02

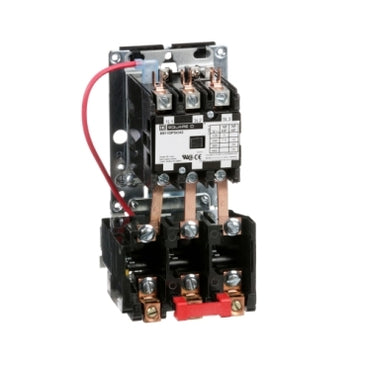

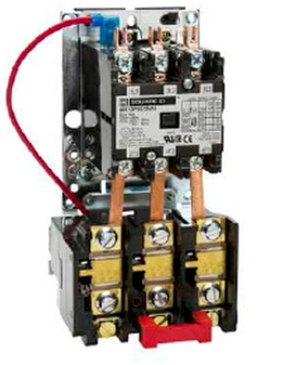

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8911DPSO43V02

Documents and manuals

Square D 8911DPSO43V02 Documents

Overview

Details for 8911DPSO43V02

Definite Purpose Starter, 40A, Open, 110V 50 Hz, 120V 60 Hz, 3-Poles, 3-Phase

Definite Purpose Starter
  • Line Rated Current: 40A
  • Poles Description: 3-Pole
  • Number of Phases: 3-Phase
  • Degree of Protection: Open Device
  • Control Circuit Voltage: 110V AC 50 Hz, 120V AC 60 Hz
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. It also has a rating of 10 HP at 230 VAC, 20 HP at 460 VAC and 25 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. Starter is an open device. A variety of enclosure types are available. Starter is 6.73 inches tall, 3.5 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Product
Definite Purpose Starter
Ampere Rating
40 A
Horsepower Rating
3 hp 115 V AC;1 phase;10 hp 230 V AC;3 phase;7.5 hp 230 V AC;1 phase;20 hp 460 V AC;3 phase;25 hp 575 V AC;3 phase
Maximum Voltage Rating
600 V AC
Control Circuit Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Phase
3 phase
Enclosure Rating
Not rated (open device)
Locked Rotor Amperes
240 A 230 V AC;200 A 460 V AC;160 A 575 V AC
Number of Poles
3P
Range
DPS
Overload Type
Melting alloy
Number of Thermal Units
3
Category
21381-8911 DP
Discount Schedule
CP1
GTIN
785901856368
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.10 in (12.954 cm)
Package 1 Width
4.90 in (12.446 cm)
Package 1 Length
7.90 in (20.066 cm)
Package 1 Weight
2.31 lb(US) (1.048 kg)
Warranty
18 months
