8911DPSG13V02 | Definite Purpose Starter, NEMA 1, 110V 50Hz, 120V 60Hz, 20A, 3-Poles | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8911DPSG13V02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 8911DPSG13V02 Documents

Datasheet More Info

Overview

Details for 8911DPSG13V02

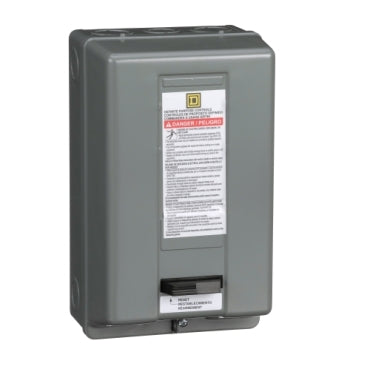

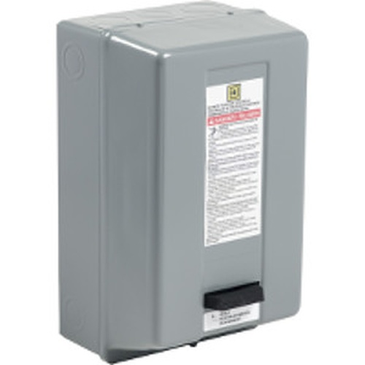

Definite Purpose Starter, NEMA 1, 110V 50Hz, 120V 60Hz, 20A, 3-Poles

Definite Purpose Starter

Degree of Protection: NEMA 1
Control Circuit Voltage: 110V AC 50Hz, 120V AC 60 Hz
Line Rated Current: 20A
Poles Description: 3-Poles
Number of Phases: 3-Phase

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Product: Definite Purpose Starter
Ampere Rating: 20 A
Horsepower Rating: 3 hp 230 V AC;1 phase;7.5 hp 230 V AC;3 phase;1.5 hp 115 V AC;1 phase;7.5 hp 460 V AC;3 phase;7.5 hp 575 V AC;3 phase
Maximum Voltage Rating: 600 V AC
Control Circuit Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
Phase: 3 phase
Enclosure Material: Painted sheet steel
Enclosure Rating: NEMA 1
Locked Rotor Amperes: 120 A 230 V AC;100 A 460 V AC;80 A 575 V AC
Number of Poles: 3P
Range: DPS
Overload Type: Melting alloy
Number of Thermal Units: 3
Category: 21381-8911 DP
Discount Schedule: CP1
GTIN: 785901081470
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.40 in (16.256 cm)
Package 1 Width: 6.80 in (17.272 cm)
Package 1 Length: 10.60 in (26.924 cm)
Package 1 Weight: 5.64 lb(US) (2.558 kg)
Warranty: 18 months
