8910DPA44V04 | Definite Purpose Contactor Type DPA, 40A, 4-Poles, 277 VAC 60Hz | Square D by Schneider Electric

Brand: Square DSKU: 8910DPA44V04

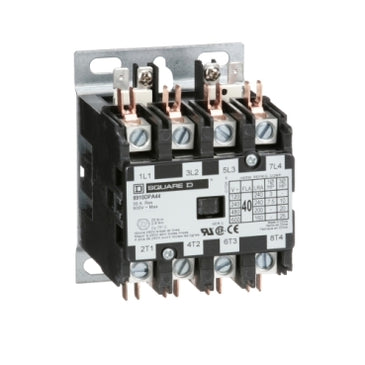

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8910DPA44V04

Jump to: Overview & Specifications Reviews

Overview Details for 8910DPA44V04

Definite Purpose Contactor Type DPA, 40A, 4-Poles, 277 VAC 60Hz

Definite Purpose Contactor:

Range of Product: DPA
Line Rated Current: 40A
Motor Power Horsepower: 3HP 115VAC, 7.5HP 230VAC, 10HP 230VAC, 20HP 460VAC, 25HP 575VAC
Number of Phases: 3-Phase
Number of Poles: 4-Pole
Control Circuit Voltage: 277 VAC 60Hz
Enclosure Rating: Open
Mounting: Panel
System Voltage: 600VAC
Locked Rotor Rated Current: 200A 460 VAC, 160A 575 VAC, 240A 277 VAC
Electrical Connection: Quick Connect Terminals, Box Lugs<

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 277 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Specifications

Product or Component Type: Definite Purpose Contactor
Line Rated Current: 40 A
Number of Poles: 4P
pole contact composition: 4 NO
Range of Product: DPA
Maximum Horse Power Rating: 3 hp 115 V AC;1 phase;7.5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;20 hp 460 V AC;3 phase;25 hp 575 V AC;3 phase
locked rotor rated current: 240 A 277 V AC;200 A 460 V AC;160 A 575 V AC
[Ue] rated operational voltage: 600 V AC
[Uc] control circuit voltage: 277 V AC 60 Hz
Phase: 3 phase
Electrical Connection: Box lugs;Quick connect terminals
Product Certifications: UL Recognized;CSA
Category: 21344-8910 DPA 4-(40 AMP)
Discount Schedule: CP1B
GTIN: 785901342717
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.30 in (8.382 cm)
Package 1 Width: 3.30 in (8.382 cm)
Package 1 Length: 4.20 in (10.668 cm)
Package 1 Weight: 24.00 oz (680.389 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 8
Package 2 Height: 7.20 in (18.288 cm)
Package 2 Width: 6.90 in (17.526 cm)
Package 2 Length: 8.50 in (21.59 cm)
Package 2 Weight: 10.42 lb(US) (4.726 kg)
Warranty: 18 months
