8910DPA44V02 | Definite Purpose Contactor Type DPA, 40A, 4-Poles, 110 VAC 50HZ, 120 VAC 60Hz | Square D by Schneider Electric

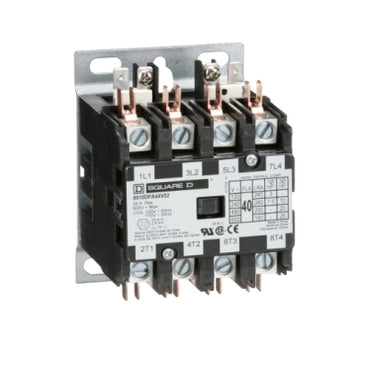

Square D | 8910DPA44V02
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8910DPA44V02

Documents and manuals

Square D 8910DPA44V02 Documents

Overview

Details for 8910DPA44V02

Definite Purpose Contactor Type DPA, 40A, 4-Poles, 110 VAC 50HZ, 120 VAC 60Hz

Definite Purpose Contactor:
  • Range of Product: DPA
  • Line Rated Current: 40A
  • Motor Power Horsepower: 3HP 115VAC, 7.5HP 230VAC, 10HP 230VAC, 20HP 460VAC, 25HP 575VAC
  • Number of Phases: 3-Phase
  • Number of Poles: 4-Pole
  • Control Circuit Voltage: 110 VAC 50Hz, 120 VAC 60Hz
  • Enclosure Rating: Open
  • Mounting: Panel
  • System Voltage: 600VAC
  • Locked Rotor Rated Current: 200A 460 VAC, 160A 575 VAC, 240A 277 VAC
  • Electrical Connection: Quick Connect Terminals, Box Lugs
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Specifications

Product or Component Type
Definite Purpose Contactor
Line Rated Current
40 A
Number of Poles
4P
pole contact composition
4 NO
Range of Product
DPA
Maximum Horse Power Rating
3 hp 115 V AC;1 phase;7.5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;20 hp 460 V AC;3 phase;25 hp 575 V AC;3 phase
locked rotor rated current
240 A 277 V AC;200 A 460 V AC;160 A 575 V AC
[Ue] rated operational voltage
600 V AC
[Uc] control circuit voltage
120 V AC 60 Hz;110 V AC 50 Hz
Phase
3 phase
Electrical Connection
Box lugs;Quick connect terminals
Product Certifications
UL Recognized;CSA
Category
21344-8910 DPA 4-(40 AMP)
Discount Schedule
CP1B
GTIN
785901073420
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.20 in (8.128 cm)
Package 1 Width
2.90 in (7.366 cm)
Package 1 Length
4.00 in (10.16 cm)
Package 1 Weight
20.48 oz (580.598 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
8
Package 2 Height
7.10 in (18.034 cm)
Package 2 Width
6.20 in (15.748 cm)
Package 2 Length
8.20 in (20.828 cm)
Package 2 Weight
10.53 lb(US) (4.776 kg)
Warranty
18 months
