8910DPA34V14 | Definite Purpose Contactor Type DPA, 30A, 4-Poles, 24 VAC 50/60Hz | Square D by Schneider Electric

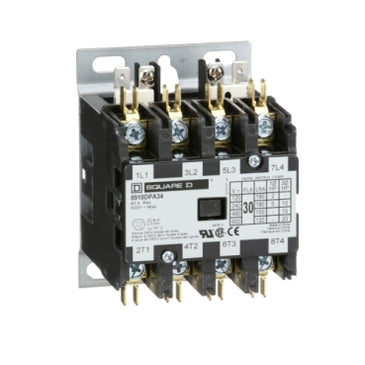

Square D | 8910DPA34V14
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8910DPA34V14

Documents and manuals

Square D 8910DPA34V14 Documents

Overview

Details for 8910DPA34V14

Definite Purpose Contactor Type DPA, 30A, 4-Poles, 24 VAC 50/60Hz

Definite Purpose Contactor:
  • Range of Product: DPA
  • Line Rated Current: 30A
  • Motor Power Horsepower: 2HP 115VAC, 5HP 230VAC, 10HP 230VAC, 15HP, 460VAC, 20HP 575VAC
  • Number of Phases: 3-Phase
  • Number of Poles: 4-Pole
  • Control Circuit Voltage: 24 VAC 60Hz
  • Enclosure Rating: Open
  • Mounting: Panel
  • System Voltage: 600VAC
  • Locked Rotor Rated Current: 150A 460 VAC, 120A 575 VAC, 180A 277 VAC
  • Electrical Connection: Quick Connect Terminals, Binder Head
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.

Specifications

Product or Component Type
Definite Purpose Contactor
Line Rated Current
30 A
Number of Poles
4P
pole contact composition
4 NO
Range of Product
DPA
Maximum Horse Power Rating
2 hp 115 V AC;1 phase;5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;15 hp 460 V AC;3 phase;20 hp 575 V AC;3 phase
locked rotor rated current
150 A 460 V AC;120 A 575 V AC;180 A 277 V AC
[Ue] rated operational voltage
600 V AC
[Uc] control circuit voltage
24 V AC 50/60 Hz
Phase
3 phase
Electrical Connection
Quick connect terminals;Binder head
Product Certifications
UL Recognized;CSA
Category
21343-8910 DPA 3-(30 AMP)
Discount Schedule
CP1B
GTIN
785901073512
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.10 in (7.874 cm)
Package 1 Width
4.10 in (10.414 cm)
Package 1 Length
3.20 in (8.128 cm)
Package 1 Weight
20.96 oz (594.206 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
8
Package 2 Height
7.00 in (17.78 cm)
Package 2 Width
6.90 in (17.526 cm)
Package 2 Length
8.40 in (21.336 cm)
Package 2 Weight
12.00 lb(US) (5.443 kg)
Warranty
18 months
