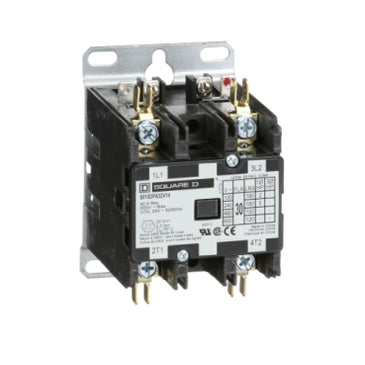

8910DPA32V14 | Definite Purpose Contactor Type DPA, 30A, 2-Poles, 24 VAC 50/60Hz | Square D by Schneider Electric

Definite Purpose Contactor Type DPA, 30A, 2-Poles, 24 VAC 50/60Hz

Definite Purpose Contactor:

• Range of Product: DPA
• Line Rated Current: 30A
• Motor Power Horsepower: 2HP 115VAC, 5HP 230VAC
• Number of Phases: 1-Phase
• Number of Poles: 2-Pole
• Control Circuit Voltage: 24 VAC 50/60Hz
• Enclosure Rating: Open
• Mounting: Panel
• System Voltage: 600VAC
• Locked Rotor Rated Current: 150A 460 VAC, 120A 575 VAC, 180A 277 VAC
• Electrical Connection: Quick Connect Terminals, Binder Head

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
