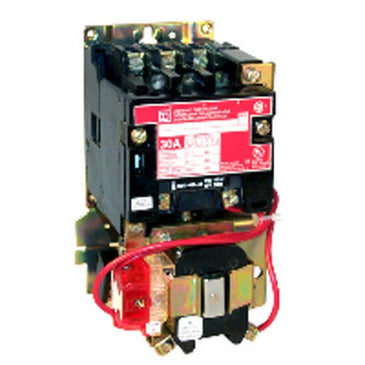

8903SMO10V02 | Class 8903 Type S Mechanically Held Lighting Contactor, Not Rated, 30A, 2-Poles, 110V AC 50 Hz 120V AC 60 Hz, Non-Reversing | Square D by Schneider Electric

Class 8903 Type S Mechanically Held Lighting Contactor, Not Rated, 30A, 2-Poles, 110V AC 50 Hz 120V AC 60 Hz, Non-Reversing

Class 8903 Type S Mechanically Held Lighting Contactor:

• Non-Reversing
• NEMA Degree of Protection: Not Rated
• Line Rated Current: 30A
• Number of Poles: 2-Pole
• Control Circuit: Separate Control Circuit
• Control Circuit Voltage: 110V AC 50 Hz 120V AC 60Hz
• Mounting: Surface
• System Voltage: 600VAC
• Electrical Connection: Lugs

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 8.81 inches tall, 2.88 inches wide and 3.25 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
