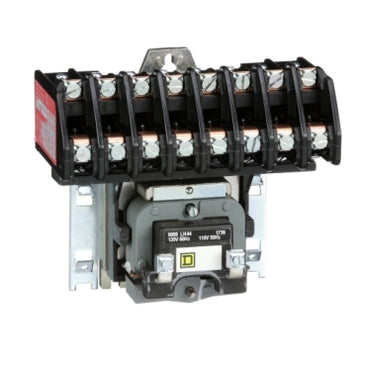

8903LO80V02 | LIGHTING CONTACTOR 600VAC 30A L | Square D by Schneider Electric

Brand: Square DSKU: 8903LO80V02

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8903LO80V02

Jump to: Overview & Specifications Reviews

Overview Details for 8903LO80V02

LIGHTING CONTACTOR 600VAC 30A L

Type L/LX Lighting Contactors - Available with current ratings from 30-800A

UL Listed and CSA certified to meet a variety of North American needs

Class 8903 L/LX multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control.

Features and benetits

30 Amp ballast lighting rating, 20 Amp tungsten lighting rating
Electrically and mechanically held
50-60 Hz rated
Two thru 12 pole versions
Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
Silver-Cadmium-Oxide double break contacts
Available as open type or with following enclosures
- NEMA Type 1 General Purpose
- EMA Type 1 Flush Mounting General Purpose with Plaster Adjustment
- NEMA Type 3R Rainproof Enclosure
- NEMA Type 4 & 4X Watertight Dust tight and Corrosion Resistant Glass-Polyester
- NEMA Type 4 & 4X Watertight, Dust tight Brushed Stainless Steel
- NEMA Type 12 Dust tight and Drip tight for Industrial use
Power Poles
- Kits provided to add 30A power poles conveniently to existing Type L contactors when additional circuits are required
- Type L contactors are supplied with mounting bracket, so adder poles may be conveniently mounted from the front by a single captive screw
- Adder poles supplied with standard N.O. contacts which are convertible to N.C. for flexibility
UL Listed and CSA certified to meet a variety of North American needs

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 8 pole device has 8 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 5.63 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Specifications

Product or Component Type: Electrically Held Lighting Contactor
Range of Product: 8903L
Control Circuit: Separate control circuit
Control Circuit Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
inrush power in VA: 180 VA 60 Hz;170 VA 50 Hz
hold-in power consumption in VA: 35 VA 60 Hz;35 VA 50 Hz
Current Rating: 20 A tungsten;30 A fluorescent
Number of Poles: 8P 8 NO
Control Unit: No control units
Pilot Light: No indicator
Electrical Connection: Screw-clamp terminals
Height: 5.00 in (127 mm)
Depth: 3.11 in (79 mm)
Width: 5.63 in (143 mm)
Enclosure Type: Not rated (open device)
Product Certifications: UL Listed;CSA
Category: 21321-8903 L (NOT LX)
Discount Schedule: CP1
GTIN: 785901851738
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.71 in (14.5 cm)
Package 1 Width: 7.20 in (18.3 cm)
Package 1 Length: 7.99 in (20.3 cm)
Package 1 Weight: 3.68 lb(US) (1.67 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 126
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 463.90 lb(US) (210.42 kg)
Warranty: 18 months
