8903LO20V02 | LIGHTING CONTACTOR 600VAC 30A L | Square D by Schneider Electric

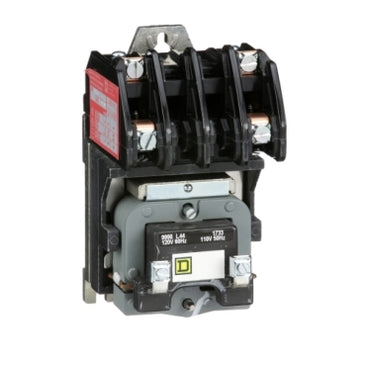

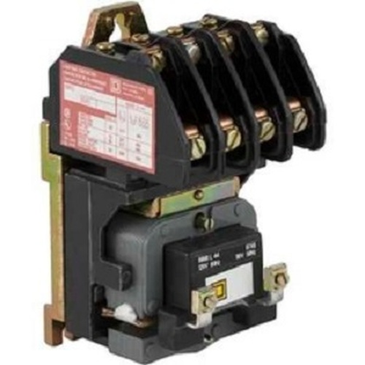

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8903LO20V02
Overview
Details for 8903LO20V02
LIGHTING CONTACTOR 600VAC 30A L
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 2 pole device has 2 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.Specifications
- Product or Component Type
- Electrically Held Lighting Contactor
- Range of Product
- 8903L
- Control Circuit
- Separate control circuit
- Control Circuit Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- inrush power in VA
- 150 VA 60 Hz;140 VA 50 Hz
- hold-in power consumption in VA
- 30 VA 60 Hz;30 VA 50 Hz
- Current Rating
- 20 A tungsten;30 A fluorescent
- Number of Poles
- 2P 2 NO
- Control Unit
- No control units
- Pilot Light
- No indicator
- Electrical Connection
- Screw-clamp terminals
- Height
- 5.00 in (127 mm)
- Depth
- 3.11 in (79 mm)
- Width
- 2.87 in (73 mm)
- Enclosure Type
- Not rated (open device)
- Product Certifications
- UL Listed;CSA
- Category
- 21321-8903 L (NOT LX)
- Discount Schedule
- CP1
- GTIN
- 785901851639
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.49 in (11.4 cm)
- Package 1 Width
- 6.18 in (15.7 cm)
- Package 1 Length
- 7.01 in (17.8 cm)
- Package 1 Weight
- 2.80 lb(US) (1.27 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 189
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 529.18 lb(US) (240.03 kg)
- Warranty
- 18 months
