8538SCG11V02S | Type S Combination Starter with Disconnect Switch, Size 1, NEMA 1, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing | Square D

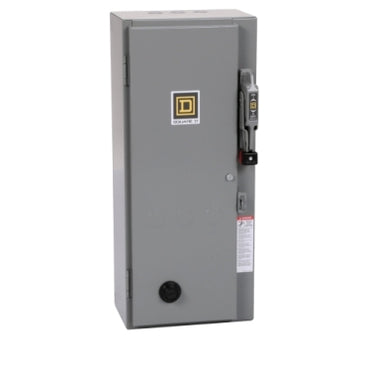

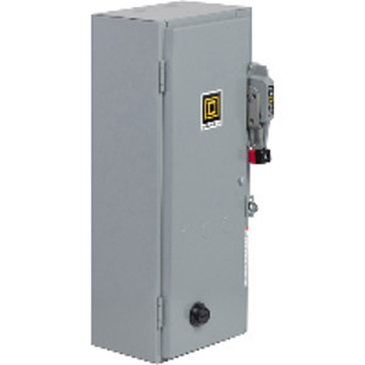

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8538SCG11V02S
Overview
Details for 8538SCG11V02S
Type S Combination Starter with Disconnect Switch, Size 1, NEMA 1, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing
Type S Full Voltage Starter with Disconnect Switch- NEMA Size: Size 1
- Degree of Protection: NEMA 1 General Purpose
- Control Circuit Voltage: 110V AC 50 Hz 120V AC 60 Hz
- Poles Description: 3-Poles
- Number of Phases: 3-Phase
- Control Circuit: Separate Control Circuit
- Motor Starter Type: Non-Reversing
Specifications
- Product
- Combination Starter
- Type
- S
- Control Circuit Type
- Separate control circuit
- Control Circuit Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- Starter Type
- Non reversing
- Number of Poles
- 3P
- Horsepower Rating
- 7.5 hp 200 V AC;3 phase;7.5 hp 230 V AC;3 phase;10 hp 460 V AC;3 phase;10 hp 575 V AC;3 phase
- Maximum Voltage Rating
- 600 V AC
- Control Units
- No control units
- Pilot Light
- No indicator
- Auxiliary Contacts
- Without
- thermal overload type
- Melting alloy 3
- Disconnect Type
- Non-fusible disconnect switch
- NEMA size
- 1
- Enclosure Type
- NEMA 1 painted sheet steel with external reset
- Category
- 21213-8538;39 SC;SD(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901744368
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.70 in (27.178 cm)
- Package 1 Width
- 13.20 in (33.528 cm)
- Package 1 Length
- 29.00 in (73.66 cm)
- Package 1 Weight
- 34.35 lb(US) (15.581 kg)
- Warranty
- 18 months
