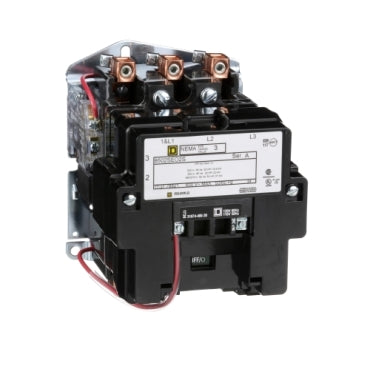

NON-REVERSING CONTACTOR, SIZE 3, 3-POLE, OPEN STYLE +OPTIONS

Non-Reversing Contactor

• Control Circuit Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz
• Contactor Type : Non-reversing
• Line Rated Current : 90 A
• Number of Poles : 3P
• Phase : 3 phases

• Horsepower Rating : 25 HP 200 V AC, 30 HP 230 V AC, 50 HP 460 V AC, 50 HP 575 V AC

• System Voltage : 600 V AC


Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing contactor has a 90 ampere rating. Three phase NEMA Size 3 contactors have 25 HP at 200, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 7.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
