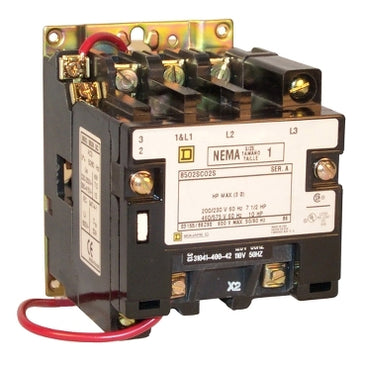

8502SCO3V02S | Class 8502 Type S Magnetic Contactor, Not Rated, 27A, 4-Poles, 110 VAC 50HZ, 120 VAC 60Hz, Non-Reversing | Square D by Schneider Electric

Class 8502 Type S Magnetic Contactor, Not Rated, 27A, 4-Poles, 110 VAC 50HZ, 120 VAC 60Hz, Non-Reversing

Class 8502 Type S Full Voltage Magnetic Contactor:

• Non-Reversing
• NEMA Size: 1
• NEMA Degree of Protection: Not Rated
• Line Rated Current: 27A
• Rated Power in Horsepower: 10 HP 460 VAC, 10 HP 575 VAC, 7.5 HP 230 VAC, 7.5 HP 200 VAC
• Phase: 3-Phase
• Number of Poles: 4-Pole
• Control Circuit: Separate Control Circuit
• Control Circuit Voltage: 110 VAC 50HZ, 120 VAC 60Hz
• Mounting: Surface
• System Voltage: 600VAC
• Electrical Connection: Screw Clamp Terminals

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 4 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
