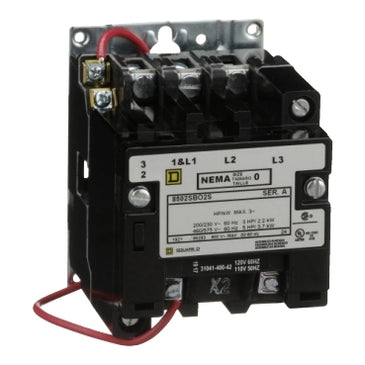

8502SBO2V02S | Class 8502 Type S Magnetic Contactor, Not Rated, 18A, 3-Poles, 110 VAC 50Hz, 120 VAC 60Hz, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: 8502SBO2V02S

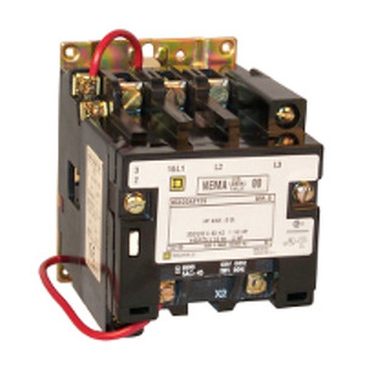

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8502SBO2V02S

Jump to: Overview & Specifications Reviews

Overview Details for 8502SBO2V02S

Class 8502 Type S Magnetic Contactor, Not Rated, 18A, 3-Poles, 110 VAC 50Hz, 120 VAC 60Hz, Non-Reversing

Class 8502 Type S Full Voltage Magnetic Contactor:

Non-Reversing
NEMA Size: 0
NEMA Degree of Protection: Not Rated
Line Rated Current: 18A
Rated Power in Horsepower: 3 HP 200 VAC, 3 HP 230 VAC, 5 HP 460 VAC, 5 HP 575 VAC
Phase: 3-Phase
Number of Poles: 3-Pole
Control Circuit: Common Control Circuit
Control Circuit Voltage: 110 VAC 50Hz, 120 VAC 60Hz
Mounting: Surface
System Voltage: 600VAC
Electrical Connection: Screw Clamp Terminals

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Three phase NEMA Size 0 contactors have 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications

Product Type: Contactor
Product Range: 8502S
Contactor Type: Non-reversing
NEMA Size: 0
Rated Current: 18 A
Number of Poles: 3P
Maximum Voltage Rating: 600 V AC
Phase: 3 phase
Horsepower Rating: 3 HP 200 V AC;3 HP 230 V AC;5 HP 460 V AC;5 HP 575 V AC
SCCR: Circuit-breaker 70 A maximum;SCCR: 100 kA at 480 V AC;Fuse J 60 A maximum;SCCR: 100 kA at 600 V AC;Fuse T 60 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK1 60 A maximum;SCCR: 100 kA at 600 V AC;Fuse RK5 60 A maximum;SCCR: 100 kA at 600 V AC
Coil Voltage: 120 V AC 60 Hz;110 V AC 50 Hz
Control Circuit Type: Separate control circuit
Control Units: No control units
Pilot Light: No indicator
Auxiliary Contacts: Without
Other Equipment: Fuse not supplied
Terminal Type: Screw clamp terminals
Height: 4.34 in (110.24 mm)
Width: 3.22 in (81.79 mm)
Depth: 4.22 in (107.19 mm)
Enclosure Type: Not rated (open device)
Certifications: UL listed file E78351 CCN NLDX;CSA
Category: 21191-8502;36 SA;SB(NOT S*R;T;W)
Discount Schedule: CP1
GTIN: 785901862833
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.98 in (15.2 cm)
Package 1 Width: 4.69 in (11.9 cm)
Package 1 Length: 7.99 in (20.3 cm)
Package 1 Weight: 3.17 lb(US) (1.44 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 175
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 560.00 lb(US) (254.012 kg)
Warranty: 18 months
