750SV43F | TRANSFORMER DRY 1PH .75KVA 120X240V-1 | Square D by Schneider Electric

Brand: Square DSKU: 750SV43F

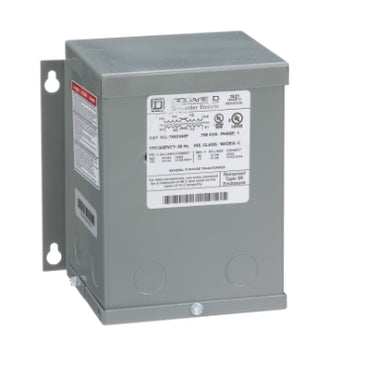

Square D | 750SV43F
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 750SV43F

Overview Details for 750SV43F

TRANSFORMER DRY 1PH .75KVA 120X240V-1

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12/24V secondary voltage. This trandformer has a rated power of 0.75KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.

Specifications

Product
Buck and Boost Transformer
Enclosure Code
6A
Enclosure Type
NEMA 3R
Insulation Temperature
356 °F (180 °C)
Primary Voltage
120 x 240 V
Power Rating
0.75 kVA
Secondary Voltage
12/24 V
Temperature Rise
115 °C
Category
16265-BUCK & BOOST
Discount Schedule
PE2
GTIN
785901019930
Number of Units in Package 1
1
Package 1 Weight
17.86 lb(US) (8.101 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
6.69 in (16.993 cm)
Package 1 Width
6.19 in (15.723 cm)
Package 1 Length
4.69 in (11.913 cm)
Unit Type of Package 2
PAL
Number of Units in Package 2
75
Package 2 Weight
1340.70 lb(US) (608.133 kg)
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
36.00 in (91.44 cm)
Package 2 Length
48.00 in (121.92 cm)
Warranty
18 months
