50SV1A | Transformer, DRY, 1PH, .05KVA, 240X480V-120/240V | Square D by Schneider Electric

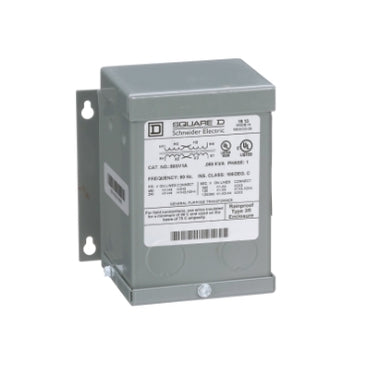

Square D | 50SV1A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 50SV1A

Documents and manuals

Square D 50SV1A Documents

Overview

Details for 50SV1A

Transformer, DRY, 1PH, .05KVA, 240X480V-120/240V

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.05 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 5 in (H), 4.47 in (W), 3.44 in (D). This product complys to UL & CSA standards.

Specifications

Product or Component Type
Dry Sealed Transformer
Primary to Secondary Voltage
240 x 480 V 120/240 V
Full Capacity Taps
0
Enclosure Code
1A
Phase
1 phase
Power Rating
0.05 kVA
temperature rise
55 °C
Height
5 in (127.00 mm)
Width
4.47 in (113.54 mm)
Depth
3.44 in (87.38 mm)
enclosure mounting
Wall mounted
Enclosure Material
Painted sheet steel
Enclosure Type
NEMA 3R
insulation temperature
221 °F (105 °C)
Product Certifications
UL Listed;cULus;CSA
Category
16277-RESIN LVGP XFMR
Discount Schedule
PE2
GTIN
785901875994
Number of Units in Package 1
1
Package 1 Weight
5.51 lb(US) (2.499 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
6.60 in (16.764 cm)
Package 1 Width
7.00 in (17.78 cm)
Package 1 Length
8.10 in (20.574 cm)
Warranty
18 months
