500SV43B | TRANSFORMER DRY 1P .5KVA 120X240V-12/24V | Square D by Schneider Electric

Brand: Square DSKU: 500SV43B

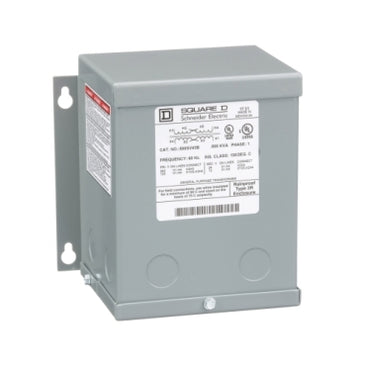

Square D | 500SV43B
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 500SV43B
Jump to: Overview & Specifications Reviews

Overview Details for 500SV43B

TRANSFORMER DRY 1P .5KVA 120X240V-12/24V

TRANSFORMER DRY 1P
  • 5KVA
  • 120X240V-12/24V
  • NEMA 3R
  • A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12/24V secondary voltage. This trandformer has a rated power of 0.5KVA. This transformer has a temperature rise of 80 °C. This product has a UL listed, cULus & CSA certifications.

Specifications

Product
Buck and Boost Transformer
Enclosure Code
5A
Enclosure Type
NEMA 3R
Insulation Temperature
266 °F (130 °C)
Primary Voltage
120 x 240 V
Power Rating
0.5 kVA
Secondary Voltage
12/24 V
Temperature Rise
80 °C
Height
6.18 in (157 mm)
Width
6.18 in (157 mm)
Depth
4.53 in (115 mm)
Net Weight
13.8 lb(US) (6.26 kg);13.80 lb(US) (6.26 kg)
Category
16265-BUCK & BOOST
Discount Schedule
PE2
GTIN
785901876199
Number of Units in Package 1
1
Package 1 Weight
15.55 lb(US) (7.053 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
7.20 in (18.288 cm)
Package 1 Width
8.30 in (21.082 cm)
Package 1 Length
8.80 in (22.352 cm)
Warranty
18 months
