2510MCO3 | Integral Horsepower Manual Starter, Open, 3-Pole, Push-button, No Indicator, 600VAC | Square D by Schneider Electric

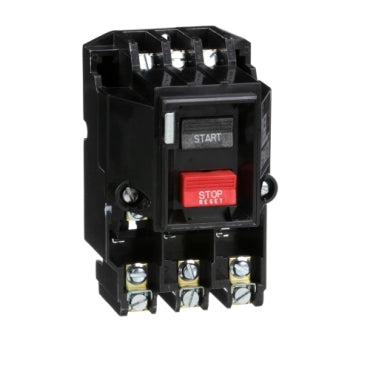

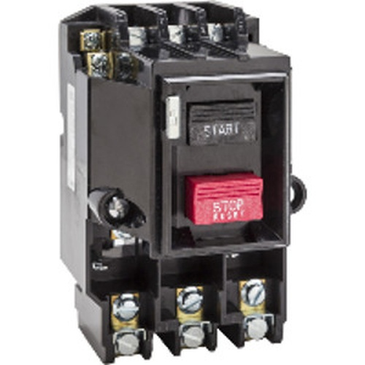

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510MCO3
Overview
Details for 2510MCO3
Integral Horsepower Manual Starter, Open, 3-Pole, Push-button, No Indicator, 600VAC
Integral Horsepower Manual Starter- Motor Power HP: 7.5 HP at 200-230V AC; 10 HP at 380-575V AC
- Number of Phase: 3-Phase
- System Voltage: 600V AC
- Poles Description: 3-Pole
- Control Type: Push-button
- Local Signaling: No Indicator
- Motor Starter Type: Non-Reversing
- Electrical Connection: Pressure Wire Clamp
Specifications
- Product
- Manual Starter
- Type
- M
- NEMA Size
- M-1
- Control Unit
- Push-button
- Pilot Light
- No indicator
- Horsepower Rating
- 7.5 hp 200...230 V AC;3 phase;10 hp 380...575 V AC;3 phase
- Voltage Rating
- 600 V AC
- Number of Poles
- 3P
- Starter Type
- Non reversing
- Electrical Connection
- Pressure wire clamp
- Overload Relay Type
- Melting alloy
- Number of Thermal Units Required
- 3
- Wire Gauge
- AWG 14...AWG 8 copper
- Auxiliary Contacts
- Without
- Height
- 5.72 in (145.29 mm)
- Width
- 3.5 in (88.90 mm)
- Depth
- 4.03 in (102.36 mm)
- Net Weight
- 2.20 lb(US) (1.00 kg)
- Certifications
- CSA LR60905 class 3211 05;UL listed file E42243 CCN NLRV
- NEMA Enclosure Rating
- Not rated (open device)
- Category
- 21103-2510;2511;2512 M;T
- Discount Schedule
- CP1
- GTIN
- 785901792208
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.20 in (13.2 cm)
- Package 1 Width
- 6.50 in (16.5 cm)
- Package 1 Length
- 8.70 in (22.1 cm)
- Package 1 Weight
- 34.88 oz (988.8 g)
- Warranty
- 18 months
