2510MCA3 | Integral Horsepower Manual Starter, NEMA 12, 3-Pole, Push-button, No Indicator, 600VAC | Square D by Schneider Electric

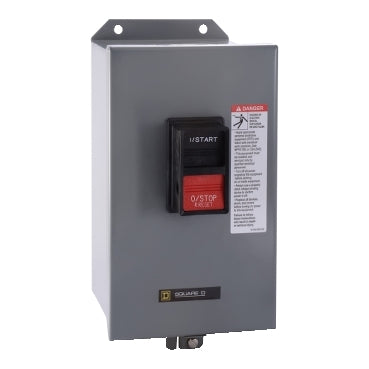

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510MCA3
Overview
Details for 2510MCA3
Integral Horsepower Manual Starter, NEMA 12, 3-Pole, Push-button, No Indicator, 600VAC
Integral Horsepower Manual Starter- Motor Power HP: 7.5 HP at 200-230V AC; 10 HP at 380-575V AC
- Number of Phases: 3-Phases
- System Voltage: 600V AC
- Poles Description: 3-Pole
- Control Type: Push-button
- Local Signaling: No Indicator
- Motor Starter Type: Non-Reversing
- Electrical Connection: Pressure Wire Clamp
Specifications
- Product
- Manual Starter
- Type
- M
- NEMA Size
- M-1
- Control Unit
- Push-button
- Pilot Light
- No indicator
- Horsepower Rating
- 7.5 hp 200...230 V AC;3 phase;10 hp 380...575 V AC;3 phase
- Voltage Rating
- 600 V AC
- Number of Poles
- 3P
- Starter Type
- Non reversing
- Electrical Connection
- Pressure wire clamp
- Overload Relay Type
- Melting alloy
- Number of Thermal Units Required
- 3
- Wire Gauge
- AWG 14...AWG 8 copper
- Auxiliary Contacts
- Without
- Height
- 10.92 in (277.37 mm)
- Width
- 5.78 in (146.81 mm)
- Depth
- 5.76 in (146.30 mm)
- Certifications
- UL listed file E42243 CCN NLRV;CSA LR60905 class 3211 05
- NEMA Enclosure Rating
- NEMA 12 painted sheet steel
- Category
- 21103-2510;2511;2512 M;T
- Discount Schedule
- CP1
- GTIN
- 785901845317
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.10 in (15.5 cm)
- Package 1 Width
- 6.81 in (17.3 cm)
- Package 1 Length
- 11.42 in (29.0 cm)
- Package 1 Weight
- 6.99 lb(US) (3.17 kg)
- Warranty
- 18 months
