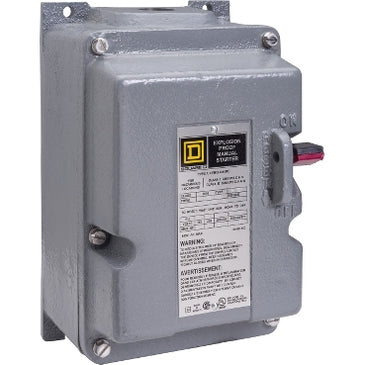

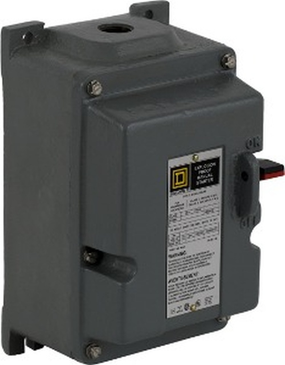

2510MBR2 | Integral Horsepower Manual Starter, NEMA 7 and 9, 3-Pole, Push-button, No Indicator, 600VAC | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510MBR2
Overview
Details for 2510MBR2
Integral Horsepower Manual Starter, NEMA 7 and 9, 3-Pole, Push-button, No Indicator, 600VAC
Integral Horsepower Manual Starter- Motor Power HP: 3 HP at 200-230V AC; 5 HP at 380-575V AC
- Number of Phases: 3-Phases
- System Voltage: 600V AC
- Poles Description: 3-Pole
- Control Type: Push-button
- Local Signaling: No Indicator
- Motor Starter Type: Non-Reversing
- Electrical Connection: Pressure Wire Clamp
Specifications
- Product
- Manual Starter
- Type
- M
- NEMA Size
- M-0
- Control Unit
- Push-button
- Pilot Light
- No indicator
- Horsepower Rating
- 3 hp 200...230 V AC;3 phase;5 hp 380...575 V AC;3 phase
- Voltage Rating
- 600 V AC
- Number of Poles
- 3P
- Starter Type
- Non reversing
- Electrical Connection
- Pressure wire clamp
- Overload Relay Type
- Melting alloy
- Number of Thermal Units Required
- 3
- Wire Gauge
- AWG 14...AWG 8 copper
- Auxiliary Contacts
- Without
- Height
- 10.5 in (266.70 mm)
- Width
- 6 in (152.40 mm)
- Depth
- 6.13 in (155.70 mm)
- Certifications
- CSA LR26817 class 3218 04;UL listed file E58760 CCN NPXZ
- NEMA Enclosure Rating
- NEMA 7/9 cast iron
- Category
- 21103-2510;2511;2512 M;T
- Discount Schedule
- CP1
- GTIN
- 785901800606
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.30 in (21.082 cm)
- Package 1 Width
- 8.20 in (20.828 cm)
- Package 1 Length
- 12.30 in (31.242 cm)
- Package 1 Weight
- 32.13 lb(US) (14.574 kg)
- Warranty
- 18 months
