2510MBA2 | Integral Horsepower Manual Starter, NEMA 12, 3-Pole, Push-button, No Indicator, 600VAC | Square D by Schneider Electric

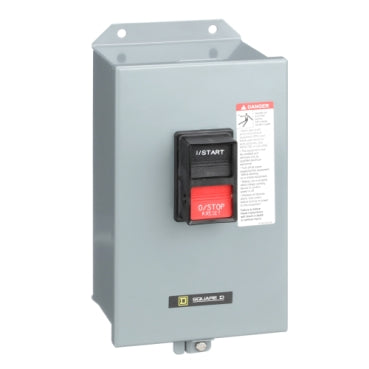

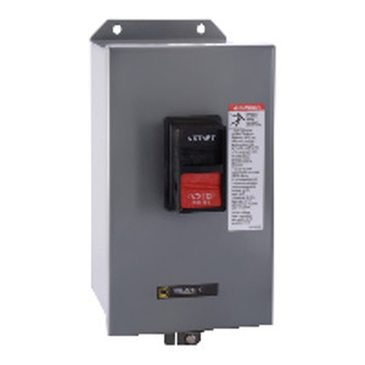

Integral Horsepower Manual Starter, NEMA 12, 3-Pole, Push-button, No Indicator, 600VAC

Integral Horsepower Manual Starter

• Motor Power HP: 3 HP at 200-230V AC; 5 HP at 380-575V AC
• Number of Phases: 3-Phases
• System Voltage: 600V AC
• Poles Description: 3-Pole
• Control Type: Push-button
• Local Signaling: No Indicator
• Motor Starter Type: Non-Reversing
• Electrical Connection: Pressure Wire Clamp

Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
