2510KR2H | Single Unit Manual Switch, 20A, NEMA 7 and 9, 3-Pole, Toggle Operated, No Indicator, 600VAC | Square D by Schneider Electric

Brand: Square DSKU: 2510KR2H

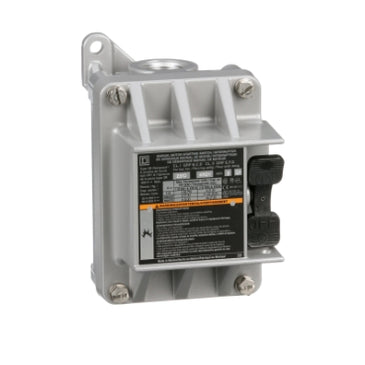

Square D | 2510KR2H
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510KR2H

Overview Details for 2510KR2H

Single Unit Manual Switch, 20A, NEMA 7 and 9, 3-Pole, Toggle Operated, No Indicator, 600VAC

Single Unit Manual Switch
  • Line Rated Current: 20A
  • Motor Power HP: 2 HP at 115V AC; 1 HP at 90V DC; 2 HP at 115V DC; 1.5 HP at 230V DC; 7.5 HP at 230V DC, 10 HP at 460V AC, 575V AC
  • System Voltage: 600V AC, 230V DC
  • Poles Description: 3-Pole
  • Control Type: Toggle Switch
  • Number of Phases: 3-Phase
  • Local Signaling: No Indicator
  • Motor Starter Type: Non-Reversing
  • Electrical Connection: Screw Clamp Terminals
2510K manual motor switches are designed for manual On Off control for small motors. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 7&9 hazardous location enclosure. A 3/4 inch conduit opening is on the top and bottom of the enclosure. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified. This switch has no pilot light indicator. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.

Specifications

Product
Single Unit Manual Switch
Type
K
Current Rating
20 A
Cable Entry
0.75 NPT (top and bottom)
Horsepower Rating
2 hp 115 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC;7.5 hp 230 V AC;10 hp 460 V AC;10 hp 575 V AC
Maximum Voltage Rating
600 V AC;230 V DC
Number of Poles
3P
Control Unit Type
Toggle
Number of Phases
3 phase
Pilot Light
No indicator
Starter Type
Non reversing
Electrical Connection
Screw clamp terminals
Wire Gauge
AWG 14...AWG 10 copper
Height
6.36 in (161.54 mm)
Width
3.95 in (100.33 mm)
Depth
4.35 in (110.49 mm)
Certifications
UL listed file E58760 CCN NPXZ;CSA LR26817 class 3218 04
NEMA Enclosure Rating
NEMA 3R/7/9 Cast Aluminium standard size
Category
21102-2510;2511;2512 K
Discount Schedule
CP1
GTIN
785901554646
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.69 in (11.9 cm)
Package 1 Width
5.59 in (14.2 cm)
Package 1 Length
7.09 in (18.0 cm)
Package 1 Weight
3.48 lb(US) (1.58 kg)
Warranty
18 months
