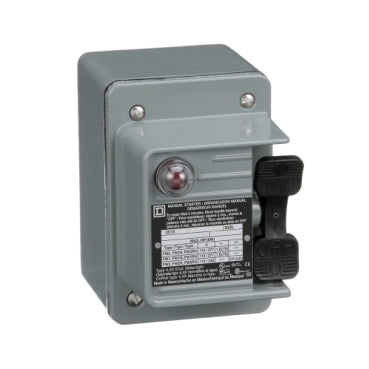

2510FW1P | Fractional Horsepower Manual Starter, 16A, NEMA 4, 1 Conduit Opening, 1-Pole, Toggle Operated with Lock, Red Indicator, 277VAC | Square D by Schneider Electric

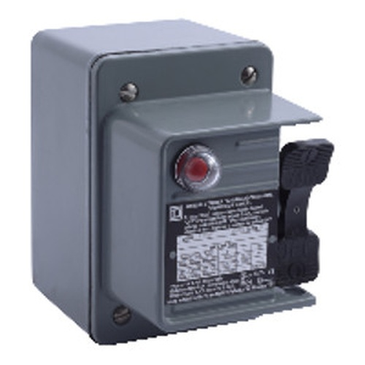

Square D | 2510FW1P
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510FW1P

Documents and manuals

Square D 2510FW1P Documents

Overview

Details for 2510FW1P

Fractional Horsepower Manual Starter, 16A, NEMA 4, 1 Conduit Opening, 1-Pole, Toggle Operated with Lock, Red Indicator, 277VAC

Fractional Horsepower Manual Starter
  • Line Rated Current: 16A
  • Motor Power HP: 1 HP at 115 VAC, 230 VAC, 277 VAC
  • System Voltage: 277V AC
  • Poles Description: 1-Pole
  • Control Type: Toggle Switch with Lock-Off
  • Number of Phases: 1-Phase
  • Local Signaling: Red Indicator
  • Reset: Manual
  • Motor Starter Type: Non-Reversing
  • Electrical Connection: Screw Clamp Terminals
Square D Type F Manual starters provide overload protection and manual On-Off control for small single phase AC motors. NEMA 4 enclosure. S are zinc alloy for indoor and outdoor applications. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified.

Specifications

Product
Single Unit Manual Starter
Type
F
Overload Relay Type
Melting alloy
Current Rating
16 A
cable entry
0.75 NPT (bottom)
Horsepower Rating
1 hp 115 V AC;1 hp 230 V AC;1 hp 277 V AC
Voltage Rating
277 V AC
Number of Poles
1P
Control Unit
Toggle switch (with lock-off)
Number of Phases
1 phase
Pilot Light
Red indicator
Reset
Manual
motor starter type
Non reversing
Electrical Connection
Screw clamp terminals
Wire Gauge
AWG 14...AWG 12 copper
Height
4.38 in (111.25 mm)
Width
3 in (76.20 mm)
Depth
4.56 in (115.82 mm)
Product Certifications
UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
NEMA Enclosure Rating
NEMA 4 die cast zinc alloy standard size
Category
21101-2510;2511;2512 F
Discount Schedule
CP1
GTIN
785901554370
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.58 in (9.1 cm)
Package 1 Width
4.69 in (11.9 cm)
Package 1 Length
5.39 in (13.7 cm)
Package 1 Weight
2.95 lb(US) (1.34 kg)
Warranty
18 months
