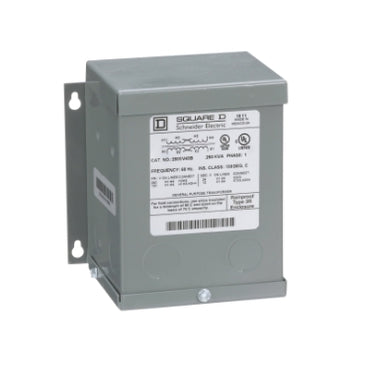

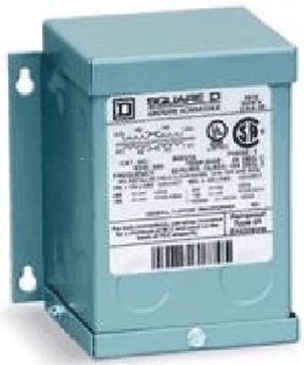

250SV43B | Transformer: Dry, PH1, Wall, .25KVA, 120 X 240 VAC, -12/24 VAC | Square D by Schneider Electric

Brand: Square DSKU: 250SV43B

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 250SV43B

Jump to: Overview & Specifications Reviews

Overview Details for 250SV43B

Transformer: Dry, PH1, Wall, .25KVA, 120 X 240 VAC, -12/24 VAC

Transformer::

Type: Dry
Phase: 1
Mount: Wall
0.25K VA Rating
Primary: 120 X 240 VAC
Secondary: -12/24 VAC

A Buck and Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck and Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12/24V secondary voltage. This transformer has a rated power of 0.25KVA. This transformer has a temperature rise of 80 °C. This product has a UL listed, cULus & CSA certifications.
