2252-252 | Pneunatic Temperature Transmitters - Duct, Range: 0 to 100 F, Rigid (Coiled) Element, 10 in. long (254 mm) | Schneider Electric

Brand: Schneider ElectricSKU: 2252-252

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 2252-252

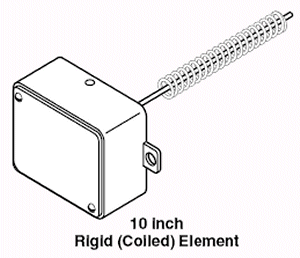

Pneunatic Temperature Transmitters - Duct, Range: 0 to 100 F, Rigid (Coiled) Element, 10 in. long (254 mm)

Pneunatic Temperature Transmitters - Duct, Range: 0 to 100 F, Rigid (Coiled) Element, 10 in. long (254 mm)

Action: Direct, proportional.
Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)
Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.
Maximum air pressure: 30 psig (207 kPa).
Output pressure: 3 to 15 psig (21 to 103 kPa).
Air connection: 1/8 in. FNPT.
Maximum case ambient temperature: 140°F (60°C).
Minimum case operating ambient temperature: 40 °F (4.4 °C).
Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.
