1S1F | Dry Sealed Transformer, 240x480V, 1-Phase, 1kVA, Wall Mount, NEMA 3R | Square D by Schneider Electric

Brand: Square DSKU: 1S1F

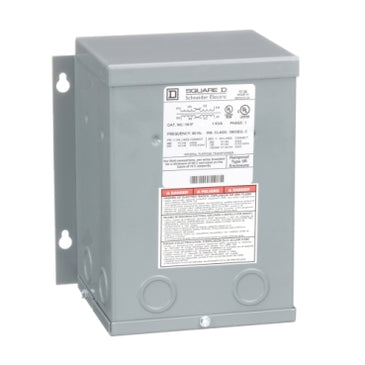

Square D | 1S1F

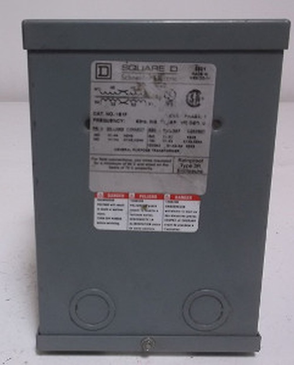

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1S1F

Overview Details for 1S1F

Dry Sealed Transformer, 240x480V, 1-Phase, 1kVA, Wall Mount, NEMA 3R

Dry Sealed Transformer
  • Primary Voltage: 240x480V
  • Secondary Voltage: 120/240V
  • Number of Phases: 1-PhaseRated Power in VA: 1kVA
  • Enclosure Mounting: Wall Mount
  • Enclosure Material: Painted Sheet Metal
  • Degree of Protection: NEMA 3R
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 1 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 8.13 in (H), 6.94 in (W), 5.31 in (D). This product complys to UL & CSA standards.

Specifications

Product or Component Type
Dry Sealed Transformer
Primary to Secondary Voltage
240 x 480 V 120/240 V
Full Capacity Taps
0
Enclosure Code
7A
Phase
1 phase
Power Rating
1 kVA
temperature rise
115 °C
Height
8.13 in (206.50 mm)
Width
6.94 in (176.28 mm)
Depth
5.31 in (134.87 mm)
enclosure mounting
Wall mounted
Net Weight
21.2 lb(US) (9.62 kg);21.21 lb(US) (9.62 kg)
Enclosure Material
Painted sheet steel
Enclosure Type
NEMA 3R
insulation temperature
356 °F (180 °C)
Product Certifications
UL Listed;cULus;CSA
Category
16277-RESIN LVGP XFMR
Discount Schedule
PE2
GTIN
785901019862
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.13 in (20.65 cm)
Package 1 Width
6.94 in (17.628 cm)
Package 1 Length
5.31 in (13.487 cm)
Package 1 Weight
24.77 lb(US) (11.236 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
44
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1090.00 lb(US) (494.415 kg)
Warranty
18 months
