100SV1A | XFMR DRY 1 PH .1KVA 240X480V-120/240V | Square D by Schneider Electric

Brand: Square DSKU: 100SV1A

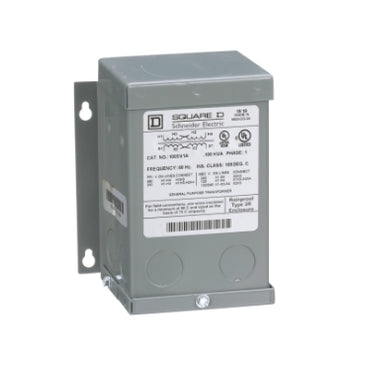

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 100SV1A

Jump to: Overview & Specifications Reviews

Overview Details for 100SV1A

XFMR DRY 1 PH .1KVA 240X480V-120/240V

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.1 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 5.5 in (H), 4.47 in (W), 3.44 in (D). This product complys to UL & CSA standards.
