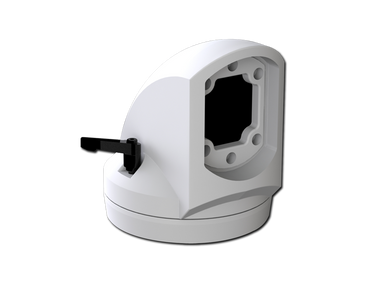

The photo is for representation purposes only and may not be a photo of product being purchased.
free shipping on orders over $999* excellent customer satisfaction secure online payment 5-star customer service
Blackhawk Supply Google Trusted Store Black Hawk Supply BBB Business Review

SCE-SA320AC | NEMA N/A | Angle Coupling, 320 Swivel, 6H x 5W x 5D | Saginaw

SKU: SCE-SA320AC Brand: Saginaw Engineering Condition: New Sale price Compare at $259.87

Regular price $172.17

Details

Saginaw Engineering part#: SCE-SA320AC

View Manufacturer Web Page

Download CAD Package

Product Specifications

Part Number: SCE-SA320AC

Description: Angle Coupling, 320 Swivel

Height: 5.89"

Width: 5.08"

Depth: 5.08"

Price Code: C3

List Price: $259.87

Catalog Page: 368

Est. Ship Weight: 5.51 lbs

Construction

  • Cast aluminum couplings.
  • Extruded aluminum tubes (6060T66).
  • Rotating couplings have adjustable tensioner brakes to control movement while in use.
  • Rigid, durable bearing in all rotating couplings withstand the stress of continuous use.
  • Open or closed tube design.
  • Open tube allows for easy access to lay in wiring, with easy to install push fit rubber cover.
  • Closed tube acts as conduit for feeding wiring.
  • Removable access covers on all couplings with 90 degree turn.
  • Hardware and gasket included for installation of coupling to tube.

Application

Designed for use with the SCE HMI enclosures, allows operators to easily move or position an HMI to an ergonomic and comfortable working position. Made of heavy-duty, reliable construction. Suspension Systems can be assembled in a multitude of configurations that allow for machine mount, wall mount, top mount, and floor mount options.

Finish

RAL 7035 powder coated finish.
Tubes are uncoated Aluminum.

Industry Standards

  • NEMA Not Applicable
  • UL Not Applicable
  • CSA N/A
