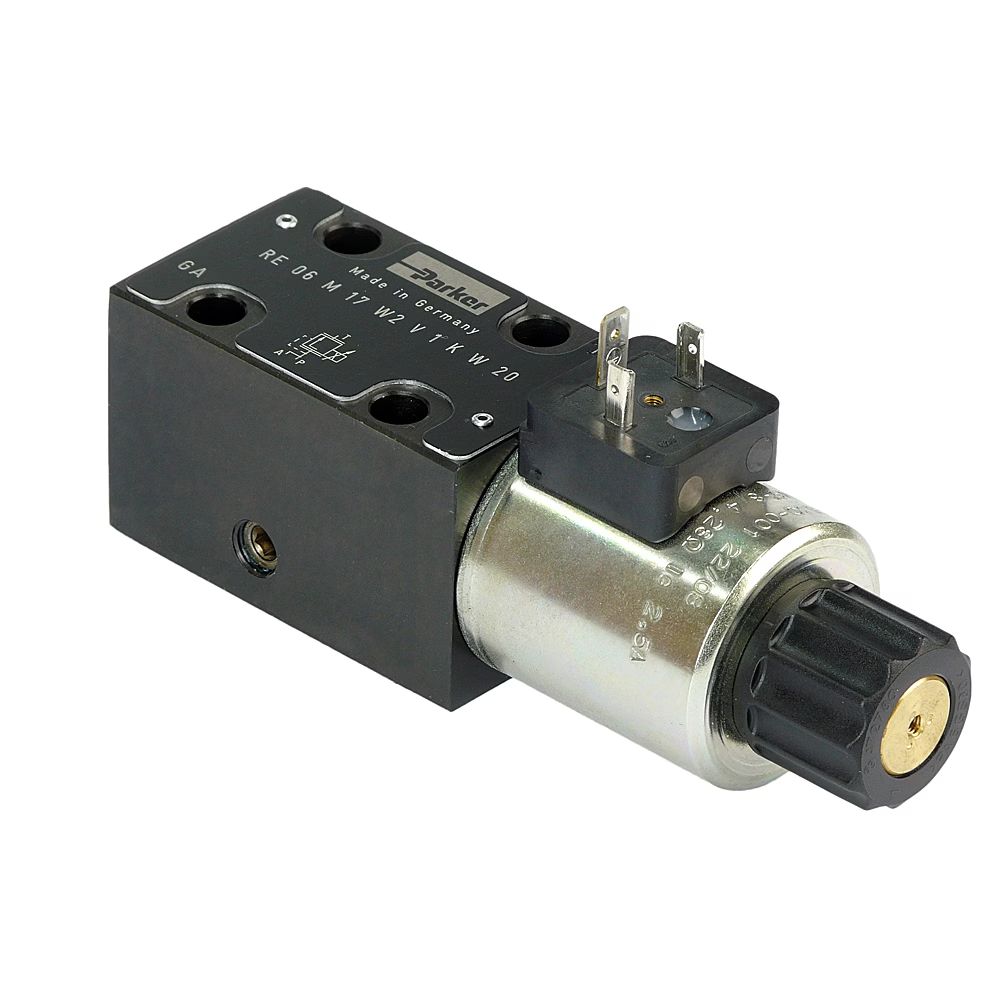

RE06M25W2V1XW | RE06M25W2V1XW20 PROP. PRESSURE RELIEF VALVE | Parker

Direct operated proportional pressure relief valves of the series RE06M*W ensure fast response times and a very low pressure drop. Thus they are typically used as remote control valves for flow rates below 3 l/min.

Markets:
• Industrial

Features/Benefits:
• Fast response time and low pressure drop - ensure efficient operation
• Very low pressure adjustment of pmin - predestined as remote control valve for cartridge valve combinations or pumps
• Short delivery time for most versions - no warehousing necessary
• Subplate mounting according to ISO 6264
• Direct operated with proportional solenoid
• 4 pressure stages
• 2 pressure ports, A and P

Applications:
• Suitable for general hydraulic applications

Function:
When the pressure in port P or A exeeds the pressure setting at the solenoid, the cone opens to port T and limits the pressure in port P to the adjusted level. The optimum performance can be achieved in combination with the digital amplifier module PCD00A-400. Also available as sandwich valve, see pilot valves series RPDM.
