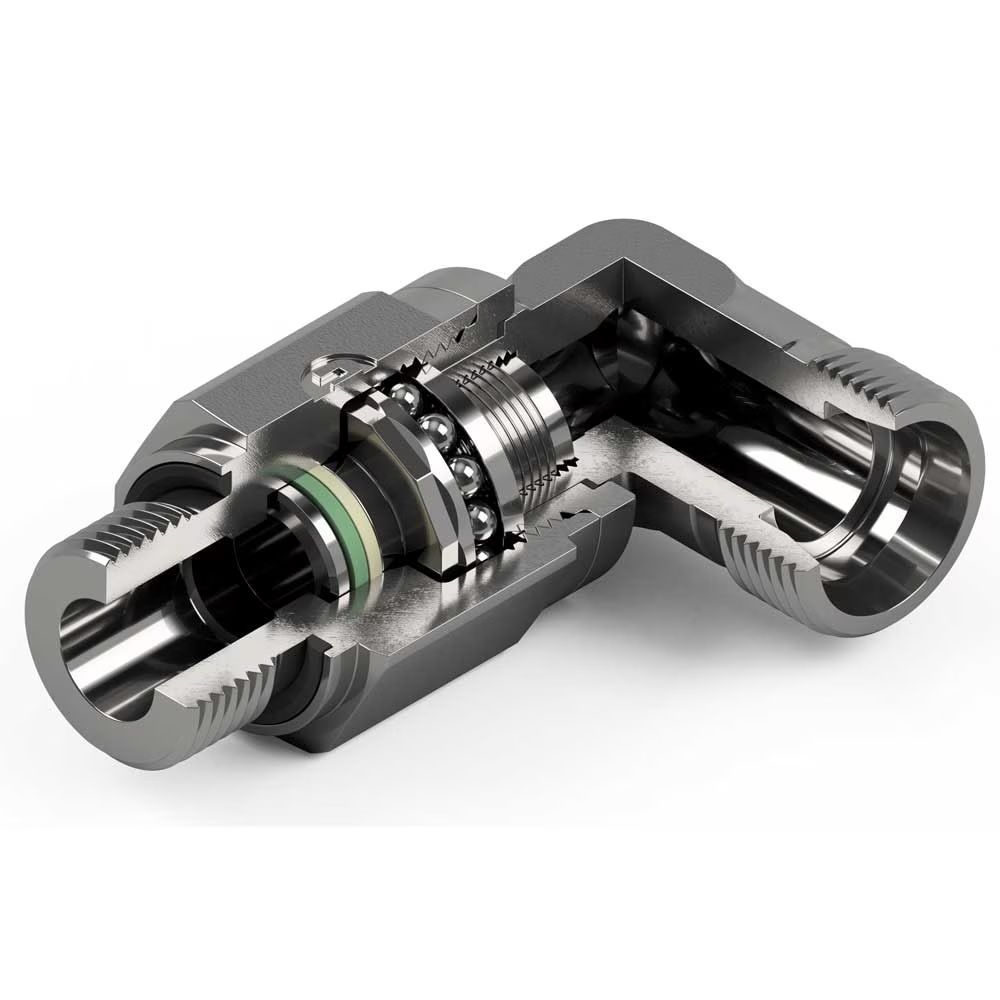

DG104/12SRHDCF | Ermeto DIN Ball bearing rotary fittings Heavy Duty 360 deg | Parker

Parker ball bearing rotary fittings are used to connext a fixed point to a rotating, swinging or moving part via hoses. These products are used to prevent torsion and small hose radius.
The ball bearing rotary fittings are suitable for hydraulic oils and lubricants on minerl oil base as flow media.
The construction of this service-proved product range is characterized by a compact, maintenance-free construction. The ball bearing rotary fittings have a combined ball and plain bearing with constant lubrication, a low starting torque and wear-resistant annular piston sealings.

Markets:
• Chemical Industries
• Plant engineering
• Power stations
• Cable storage

Applications:
• Suitable for general hydraulic applications.

Features/ Benefits of the ball bearing rotary fittings:
• Parker ball bearing rotary fittings help to avoid torsion of hoses and therefore improve the life cycle of these products
• Parker ball bearing rotary fittings have a high corrosion resistant surface.
• The construction of the ball bearing fittings is maintenance-free, so that the costs for maintenance will be reduced.

Technical specifications:
Materials: Casing, body nut of steel. Annular piston sealing: POM/FKM. Eolastic sealing: NBR, also available in FKM.
Nominal temperatures: -14 °C up to +80 °C
Construction Systems:
8 different versions with one rotational axis. Multiaxial rotary couplings on request. Tube connections according to DIN 2353, series S. Maximum working pressure 350 bar (peak pressure)
Male stud sealing by Eolastic seals of NBR
Male stud with metric parallel or BSPP thread.
