1F80-361 | Classic 80 Series Thermostat | Conventional Single Stage | Emerson Climate-White Rodgers

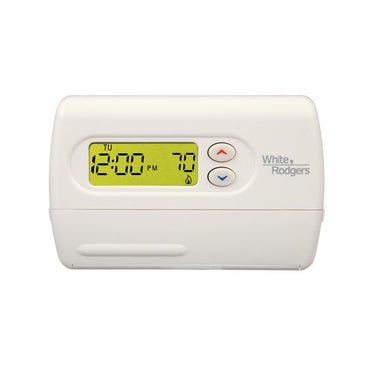

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F80-361
Overview Details for 1F80-361
1F80-361 1HT/1CL 5-1-1 LgDisply HPGOEMV by Emerson Climate-White Rodgers
The 1F80-361 is a 1HT/1CL 5-1-1 LgDisply HPGOEMV designed for industrial use.
Our HVAC supply store specializes in providing the best prices and fast shipping for the 1F80-361 and many other HVAC products.
Our best selling digital thermostat available as a Single Stage Thermostat offering proven performance and reliability.
- Choice of battery powered, dual power or hardwired model
- Fossil fuel or electric heat compatible
- Permanent program retention during power loss
- Configuration menu allows keypad selection of options
- Selectable energy management recovery
Specifications
- Program Options
- Programmable - 5+1+1 Day
- Program Periods Per Day Options
- 4
- Stages Heat/Cool
- Single Stage - 1H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- RC, RH, C, W, Y, O, B, G
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery, Hardwire
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- Yes
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 2.2 square in.
- Backlight
- Key Press
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
