1F78-144 | Classic 70 Series Thermostat | Conventional Single Stage | Emerson Climate-White Rodgers

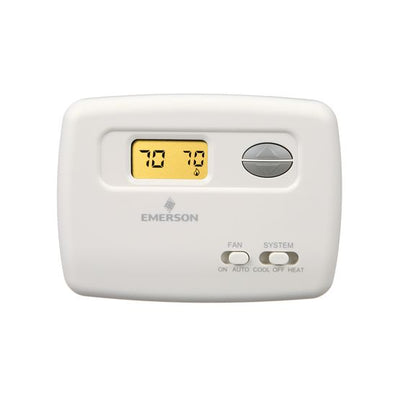

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F78-144
Overview Details for 1F78-144
24V,MV,HT/CL NonProgDig BatPwrThe 1F78-144 from Emerson Climate-White Rodgers is a 24V,MV,HT/CL NonProgDig BatPwr. This product is manufactured in United States and is part of Emerson Climate-White Rodgers's product line.Shop our HVAC supply store offers a wide range of industrial parts and products for fast shipping, and the best prices.
The perfect upgrade from mechanical thermostat available as a Single Stage offering economy and value with proven reliability.
- Horizontal model
- Non-programmable model
- Selectable Celsius or Fahrenheit temperature display
- Fossil fuel or electric heat compatible
- Electronic accuracy
- Temperature accuracy for customers on a budget
Specifications
- Program Options
- Non-Programmable
- Program Periods Per Day Options
- None
- Stages
- Single Stage - 1H/1C
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- RC, RH, W, Y, O, B, G
- 3-Wire Zone Valve Connections
- No
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- No
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- None
- Remote Sensor Options
- None
- Power Source
- Battery
- Auto Changeover (Heat/Cool)
- No
- Fan Option
- Auto, On
- Filter Change Reminder
- No
- Energy Mgt. Recovery/Early Start
- No
- Keypad Lockout
- No
- Set-Point Temperature Limits
- No
- Display Type
- 1.2 square in.
- Backlight
- Key Press
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
