19A96 | Lennox 104758-18, 1 HP ECM - Programmed Blower Motor, 1250 RPM Variable, 48 FR, 120/240 VAC 1 Ph 60/50 Hz | Lennox

Brand: LennoxSKU: 19A96
Lennox | 19A96

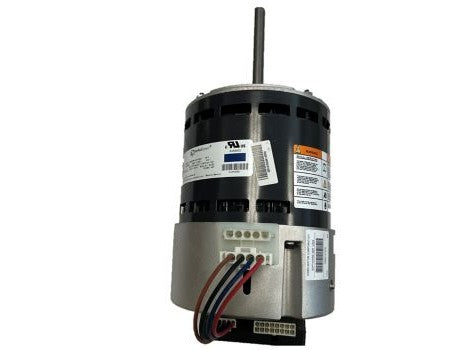

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 19A96

Overview Details for 19A96

Lennox Blower Motor 19A96: A High-Performance HVAC Component The Lennox 19A96 blower motor is a critical component for heating, ventilation, and air conditioning (HVAC) systems. It plays a pivotal role in circulating air throughout the system to ensure efficient and even temperature distribution. Engineered by Lennox, a leading manufacturer of HVAC equipment, this blower motor is renowned for its reliability and performance. The 19A96 blower motor is specifically designed for use in various HVAC systems. Its robust construction features high-quality materials to withstand the demands of continuous operation. The motor's efficient design minimizes energy consumption while delivering optimal airflow, resulting in reduced operating costs. This blower motor is easy to install and maintain, making it a convenient choice for both new installations and replacements. Its compact size allows for flexible placement within the HVAC system. Additionally, the motor is designed for quiet operation, minimizing noise disturbances in the surrounding environment. By utilizing the Lennox 19A96 blower motor, you ensure the efficient and reliable operation of your HVAC system. Trust our HVAC supply store for the best prices and fast shipping on all your HVAC needs!

Specifications

Item Number 19A96
Brand Lennox
Amperage (AMPs) 11.5/6.9A
Base Unit of Measure Unit(S)
Bearing Type Ball
Brand Lennox
Catalog Number 19A96
Core Product No
Frame Size 48
Gross Weight 12 LB
Hertz 60/50 hz
Horsepower 1 HP
Material Description Blower Motor; 1.0 HP; Variable Speed; 16 Pin Connector
Model/Part Number 104758-18
Motor HP 1 HP
Motor Mounting Position Horizontal
Motor Mounting Type Belly Band
Motor Type ECM
Motor Type ECM - Programmed
Motor Voltage 120/240 VAC 1 Ph 60/50 Hz
Number of Speeds Variable
Phase 1 Phase
Rotation Reversible
RPM Variable 1250 RPM
Shaft Size 1/2 x 4.5 IN
Speed Variable
