VG1841AF+9A4GGA | 1/2" 3W BALL VALVE 2.9CV; BRASS TRIM NON-SPR RET VA9104-GGA-2S NO SWITCH 0-10V PROPORTIONAL | Johnson Controls
Documents and manuals
Johnson Controls VG1841AF+9A4GGA Documents
Overview
Details for VG1841AF+9A4GGA
1/2" 3W BALL VALVE 2.9CV; BRASS TRIM NON-SPR RET VA9104-GGA-2S NO SWITCH 0-10V PROPORTIONAL
Description

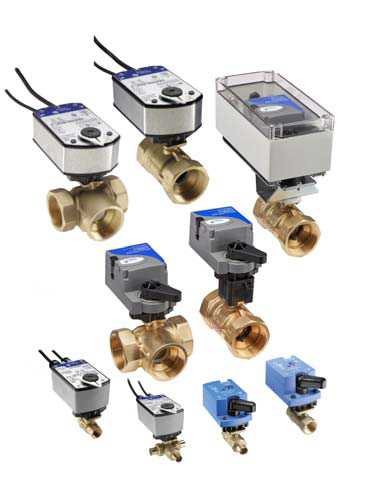

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104 and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
Features
- Forged Brass Body — provides 580 psig static pressure rating.
- 200 psi Closeoff Pressure Rating — provides tight shutoff.
- Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats — include 15% graphite-reinforced ball seals, providing better wear resistance.
- 500:1 Rangeability — provides accurate control under all load conditions.
- Chrome-Plated Brass Ball and Stem Assembly Standard — handles both chilled and hot water applications with a fluid temperature range of 23°F to 203°F (-5°C to 95°C).
- 1/2" 3-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
- CV 2.9/1.9
- 24 VAC
- Proportional [0(2) to 10 VDC]
- Non-Spring Return
- 35 in-lb Torque
- 48 in. Plenum Cable
- Female NPT
- 60 sec Runtime
- Close-Off 200 psi
- Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
- NEMA 2
- 002.00 - 002.99
Specifications
Item Number | VG1841AF+9A4GGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Modulating |
Control Valves Type | Ball Valve |
Section | Ball 3-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Ball 3-Way w/ Electric Actuator |
Valve Size | 0.5" - 3-Way |
Voltage | 24V |
