Overview
Details for ZP6-ESP

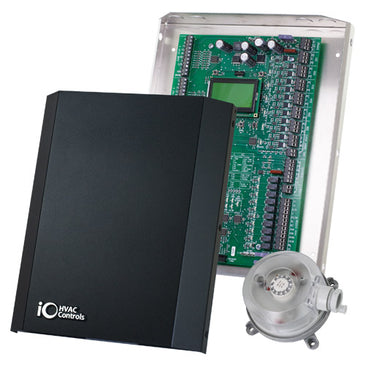

Six Zone (4H/2C) Panel w/ ESP
Six Zone (4H/2C) Panel w/ ESP
The ZP6-ESP is a 6 zone panel that integrates our award winning ESP technology to completely eliminate the need to install a bypass damper. This 4H/2C zone panel comes with a static pressure sensor. The system works like any standard zone control system with one exception; a static pressure sensor continuously monitors the system static pressure. If the static pressure goes above setpoint, the ESP panel will power the non-calling zone dampers open just enough to relieve the excess pressure. Tests indicate that bleeding a small amount of conditioned air for a short time into non-calling zones has little to no impact on the zone temperature.
The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment. Programmable LCD and slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.
Features and Benefits:
- 6 zones expandable up to 12
- Auto changeover
- Cooling priority or majority wins
- Twenty minute time share option
- Optional night thermostat
- Humidification/Dehumidification pass-throughs
- Staging by zone thermostat or stage timer
- Purge cycle option
- DK and BK terminals work with most variable speed blowers
- For use with 3 wire dampers
- Adjustable high and low limit
- Adjustable high and low balance point
- Equipment fault pass-through indicator
- LCD displays: Discharge air temperature, return air temperature and outdoor temperature
Warranty: 10 years
Specifications
Item Number | ZP6-ESP |
Brand | iO HVAC Controls |
Type | Zoning Panel |
