MD-1006 | MD Series 10x06 (3) Wire Damper PO/PC | iO HVAC Controls

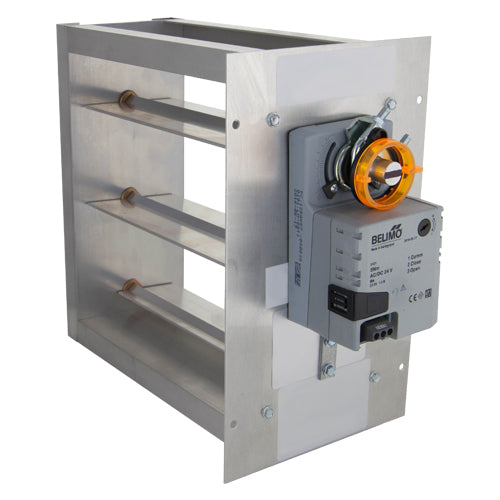

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MD-1006

Jump to: Documents Overview Specifications Reviews

Documents and manuals

iO HVAC Controls MD-1006 Documents

Datasheet More Info

Overview

Details for MD-1006

ACTUATORS ARE INSTALLED ON 2ND DIMENSION

MD Series 10x06 (3) Wire Damper PO/PC

Height: 10

Width: 6

Total Size: 10 x 06

Actuator Placement on the dimension: 6

Description

The MD Series dampers are perfect for use with most zoning systems and recommended for use with our iO-ESP-400 and ESP zone panels. These dampers are shipped complete and ready for installation. The MD Series dampers can be installed in any position. They are rated for duct systems less than 1.0” WC. The MD Series damper has a simple adjustment for setting the minimum position.

Features and Benefits

Two-position 24V motor; power close/power open, 3-wire
Compatible with iO-ESP-400 and iO Zone ESP
Quiet operation
Simple adjustment for setting the minimum position

Warranty: 5 years

Construction Rectangular: extruded aluminum

Sizes: Rectangular: 6” x 6” to 30” x 20” side-mount and bottom-mount

Damper Actuator Type: 24VAC, 2.5VA, three-wire power open/power close

Timing: 60 seconds
