Overview

Details for iO-FAV-06

ACTUATORS ARE INSTALLED ON 2ND DIMENSION

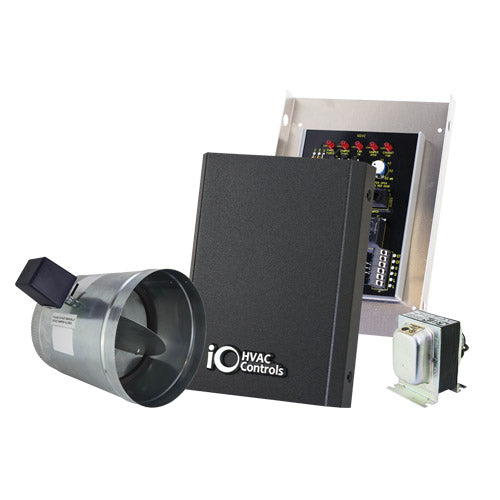

Fresh Air Ventilation Kit - 6"

The Fresh Air Ventilation system is designed to introduce fresh air into a home through an intake damper controlled by a micro-processor logic panel. The iO-FAV has single adjustment setup, exhaust fan control option, outdoor temperature and/or humidity limit option and damper override capabilities. It is easy to install and meets ASHRAE Standard 62.2. The iO-FAV kit comes with a control panel, 20VA transformer and 6” or 8” round damper. The control panel is available separately (iO-FAVPAN) and can be ordered with additional size dampers.

Features and Benefits:

Micro-controller logic panel
Status LEDs
Single adjustment setup
“Damper Closed” override switch
Meets ASHRAE Standard 62.2
Exhaust fan control options
Remote damper override options
Outdoor temperature and humidity override option
Optional On Demand CO2 gas detection Warranty: 5 years
