HD-1816 | Rectangular 18 x 16 Zone Damper | iO HVAC Controls

ACTUATORS ARE INSTALLED ON 2ND DIMENSION

Rectangular 18 x 16 Zone Damper

Height: 18

Width: 16

Total Size: 18 x 16

Actuator Placement on the dimension: 16

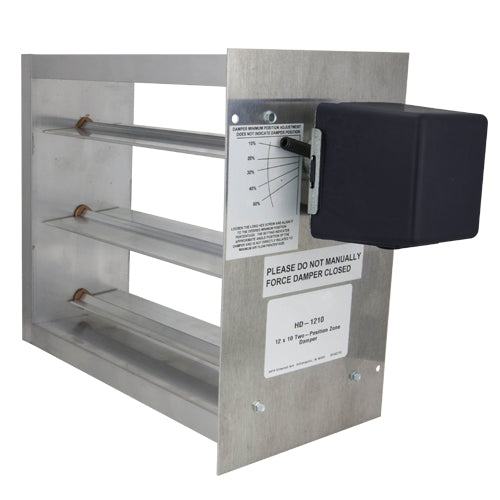

The HD Series dampers are extruded aluminum parallel blade dampers with a 24 volt spring return actuator. These dampers are shipped complete and ready for installation. The HD Series dampers can be installed in any position. They are rated for duct systems with less than 1.0” WC. The damper has a simple adjustment for setting the minimum position.

Features and Benefits:

• Compatible with most zone control panels
• Extruded aluminum
• 24 volt synchronous motor
• Quiet operation
• Simple adjustment for setting the minimum position
