ACTUATORS ARE INSTALLED ON 2ND DIMENSION

Electronic 16 x 12 Bypass Damper

Height: 16

Width: 12

Total Size: 16 x 12

Actuator Placement on the dimension: 12

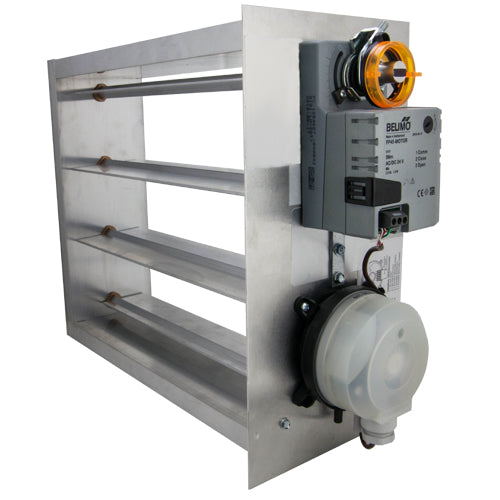

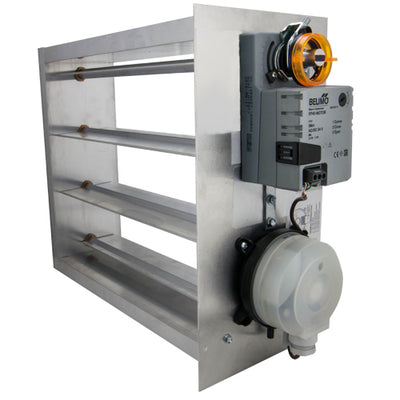

EB Series electronic bypass dampers are used to automatically bypass excess air when increases in duct pressure occur due to closing of zone dampers. The EB Series dampers utilize a floating-point actuator along with the iO-SPC static pressure control. The iO-SPC has a fully calibrated setpoint dial for easy setup and adjustment. The iO-SPC maintains the system static pressure by modulating the bypass damper. EB Series electronic bypass dampers are recommended for systems from 0.08” WC up to 1.20” WC of static pressure.

Features and Benefits:

•  Easy Adjustment
• Many sizes available
• Installation flexibility
• Reduces system noise
• Round and rectangular
