E10-3208200MKIT | Class 1000 Meter, 120/208-240V, 200A, JIC Steel Enclosure, Pulse Output, 1 Split-Core Current Sensor with 2V Output | Honeywell
Documents and manuals
Honeywell E10-3208200MKIT Documents
Overview
Details for E10-3208200MKIT

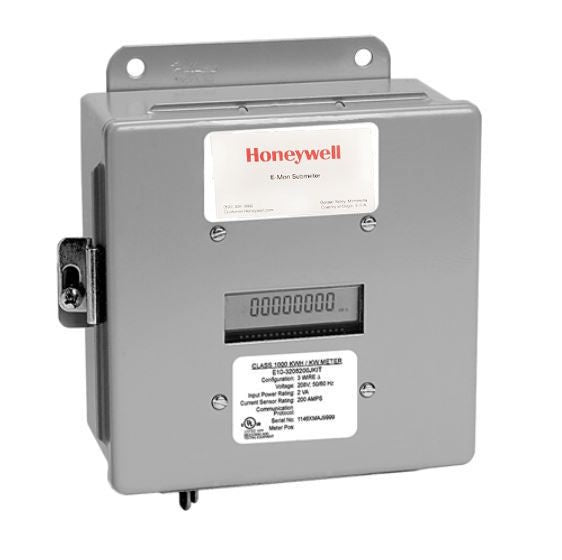

Class 1000 Meter, 120/208-240V, 200A, JIC Steel Enclosure, Pulse Output, 1 Split-Core Current Sensor with 2V Output
E-Mon Class 1000 Single Phase Pulse Meter
Single phase kWh meter used to monitor electric power usage of individual loads after the utility meter
E-Mon Class 1000 single phase kWh/demand meters offer the basic building blocks of an affordable, effective and scalable energy management system. These easy-to-install meters can monitor anything from a single-phase circuit to a specific load panel to an entire building. Energy usage data can be viewed via the LCD display on the meter for easy, walk-up and read monitoring of energy consumption. Remote metering via E-Mon Energy Automatic Meter Reading (AMR) systems or Web-Mon Web Enabled Monitoring System is also easily interfaced for tenant billing, energy management and cost allocation based on actual usage, not estimation or ratio-based calculations.
Features & Benefits:
- Direct-read 2-line alpha-numeric LCD display without multiplier displays cumulative kWh and “real-time” kW load
- Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure
- Revenue-grade accuracy
- Current sensor installation diagnostics
- Fixed pulse output
- Non-volatile memory
- Maintains reading in the event of power failure
- Meter can be used on the following configurations: - 1-Phase, 2-Wire - 2-Phase, 3-Wire with included low-voltage split-core current sensors
- Industrial grade JIC steel and optional NEMA 4X polycarbonate enclosure (standard) with padlocking hasp & mounting flanges for indoor/outdoor installation.
- UL/CUL Listed
- Certified by independent test lab to ANSI C21.20 national accuracy standards. (+/- 0.2% from 1% to 100% of rated load.)
- California CTEP approved for use with solid-core current sensors. Listed by the California Energy Commission
- New York City approved, Con Edison approved for RSP program
Specifications
Item Number | E10-3208200MKIT |
Brand | Honeywell |
Amps | 200A |
Housing | JIC Steel Enclosure |
Sensors | Included |
Series | Class 1000 Meter |
Signal Output/Protocol | Pulse Output |
Type | Meters |
Voltage | 120/208-240V |
