ZTA1000V-000 | Z Series Analog Solend Pump, Diaphrgm, 160s/m,Timed Dosage, FPM Seals | Hayward

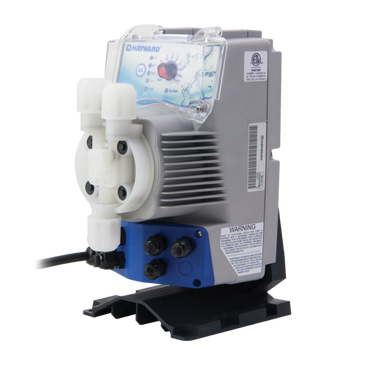

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZTA1000V-000
Overview Details for ZTA1000V-000
Z Series Analog Solend Pump, Diaphrgm, 160s/m,Timed Dosage, FPM Seals
The New Z Series Solenoid Diaphragm Metering Pumps brings simplicity to your metering pump needs in all aspects of design, function and performance. The Z Series features only one design configuration, featuring front facing controls and tube connections, allowing for easy and flexibleinstallation. No more reaching over in tight spaces for hookups and connections. Available in analog and digital versions, the Z Series offers just three sizes with flow rates ranging from 1 gph to 29 gph. Additionally, the Z Series offers a stroke rate of 160 to 300 strokes/minute. No need to have multiple makes or models to cover all your application needs
• Three Pump Sizes Cover <1 To 29 GPH, with DischargePressures up to 232 psi
• Standard One Piece Molded PVDF Pump Head
• PTFE Diaphragm Provides Superior Chemical Handling
• Degassing Valve Included on 100 and 200 Size Models
• Glass Reinforced Polypropylene Housing
• FPM Body O-Ring Seal
• Removable Bracket Allows For Panel Mounting
• Inputs: 4-20mA, Pulse, etc. (varies by model)
• Manual Priming Valve on 500 Size
• NEMA 4X/IP65 Rated
• Electrical Connections Are Configured With
“Quick-Connectors”, Capped When Not In Use
• Automatic Power Supply - 100-240 VAC 50-60 Hz
• CE Mark
• Complete Standard Installation Kit Includes:
– PVDF Foot Filter & Injection Valve
– PVC Suction Tube
– PE Delivery Tube
Specifications
Item Number | ZTA1000V-000 |
Brand | Hayward |
Category | Pumps |
Chassis | Analog Interface |
Class | Z Series Metering Pumps |
Control | Timed Dosage |
Diaphragm Material | PTFE |
Dosage Frequency | 160 strokes/min |
Model | 100 |
Sealing Material | FPM |
Series | Z Series Solenoid Diaphragm Metering Pumps |
Sub Category | Z Series Solenoid Metering Pumps |
Subtype | Metering Pumps |
Type | Corrosion Resistant Pumps |
