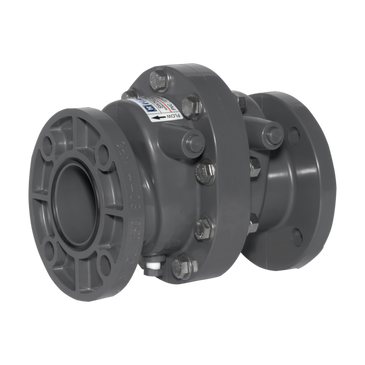

SW2600EC | 6" CPVC Swing Check Valve w/EPDM seals & counterweight; flanged end connections | Hayward

Brand: HaywardSKU: SW2600EC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SW2600EC

Jump to: Overview & Specifications Reviews

Overview Details for SW2600EC

6" CPVC Swing Check Valve w/EPDM seals & counterweight; flanged end connections

SW Series swing check valves are offered in PVC, CPVC and PP. Seals and seats are FPM or EPDM. A counterweight is an option for added stability. Swing check valves are furnished with two o-ring flange seals so no additional gaskets are required for installation. All valves are assembled with silicone free lubricant.

• Available in PVC, CPVC and GFPP
• High Temperature/Pressure Ratings
• Horizontal or Vertical Installation
• Two-in-One Seat Design
• Built-in Flange Seals
• Two Drain Ports
• Self-Aligning Clapper Seals
• High Cv Rating and Full Flow Design

Specifications

Item Number	SW2600EC
Brand	Hayward
A	5.91 in
B	15.75 in
Body Material	CPVC
C	12.75 in
Category	Check Valves
Category	Thermoplastic Valves
Class	SW Series Swing Check Valves
Cv Coefficient	250.0000
Cv Factor	1278.0
D	6.38 in
E	9.25 in
End Connection Type	Flanged
End Connection	Flanged
F	6.47 in
G	8.30 in
H	0.75 in
J	8
K	9.50 in
Material	CPVC
Options	Counterweight
Pipe Size	6 in
Pressure Rating	150 PSI
Sealing Material	EPDM
Seals	EPDM
Series	SW Series Swing Check Valves
Size	6"
Spring Material	With Counterweight
Sub Category	Check Valves
SubCategory	Swing Check Valves - SW Series
Subtype	Check Valves
Type	Thermoplastic Valves
