SLC10050SEU | 1/2" PVC Spring-Loaded True Union Y-Check Valve w/EPDM o-ring seal, socket end connections | Hayward

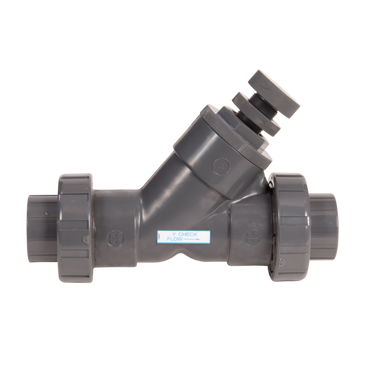

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLC10050SEU

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward SLC10050SEU Documents

Datasheet More Info

Overview

Details for SLC10050SEU

1/2" PVC Spring-Loaded True Union Y-Check Valve w/EPDM o-ring seal, socket end connections

SLC Series Y-Check valves are available in PVC only. Seals are FPM or EPDMa nd are offered in threaded body version only. True union end connections are available in socket or threaded styles. All valves are assembled with silicone free lubricant.

• Available in PVC
• Full Flow Design
• Closes with No Back Pressure
• Adjustable – Opens From 2 to 15 PSI
• Easy Maintenance
• Opens in Any Position

Specifications

Item Number	SLC10050SEU
Brand	Hayward
A	6.19 in
B	2.00 in
Body Material	PVC
C	4.58 in
Category	Check Valves
Category	Thermoplastic Valves
Class	SLC Series Spring-Loaded True Union Y-Check Valves
Cv Coefficient	0.8000
Cv Factor	0.8
D	2.13 in
End Connection Type	True Union Socket
End Connection	Socket
F	1.00 in
K	2.25 in
L	6.64 in
Material	PVC
Pipe Size	1/2 in
Sealing Material	EPDM
Seals	EPDM
Series	SLC Series Spring Loaded Y Check Valves
Size	1/2"
Spring Material	PVC
Sub Category	Check Valves
SubCategory	Spring-Loaded Y-Check Valves - SLC Series
Subtype	Check Valves
Type	Thermoplastic Valves
