FLV4P1S20DF4VS | 2" GFPP Sngl Length Filter Vessel, w/Female NPT Ports & GFPP Flanges, FPM Seals | Hayward

Brand: HaywardSKU: FLV4P1S20DF4VS

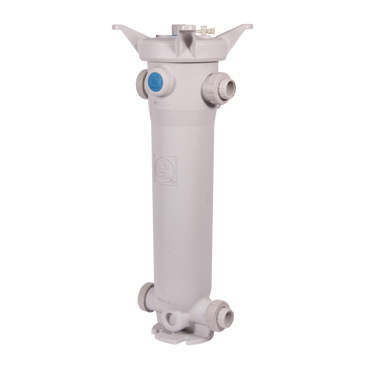

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FLV4P1S20DF4VS

Jump to: Overview & Specifications Reviews

Overview Details for FLV4P1S20DF4VS

2" GFPP Sngl Length Filter Vessel, w/Female NPT Ports & GFPP Flanges, FPM Seals

Offered in the revolutionary Platinum GFPP featuring true union end connections in 1-1/4 in. to 4 in sizes, with socket, threaded, fusion or flanged ends. One piece injection molded construction. FPM seals standard, with EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM up to 2 inch; 150 GPM for 2-1/2 inch to 4 inch end connections. Available in size 1 and size 2 vessels, as well as Simplex, Duplex or Triplex assemblies. Metric (DIN/EN) connections also available.

• Platinum Glass Filled Polypropylene
• One-Piece Injection Molded Construction
• Hand Removable, Ergonomic Cover with Liquid Displacing Dome
• Vent Valve Included on Cover
• Simplex Rated up to 100 GPM
• Duplex Rated up to 150 GPM
• True Union Socket, Threaded or Flanged End Connections
• In-Line or Loop Flow Configurations
• Double Length Solid Basket
• Drain Port at Bottom
• Integral Mounting Base
• Easier Installations Due to True Union Connectivity
• Vertical Flow Flutes in Basket, No Bag Snag and More Flow Area

Specifications

Item Number	FLV4P1S20DF4VS
Brand	Hayward
Body End Connector Material	GFPP / GFPP
Category	Filters
Class	FLV Series Bag Filters
Configuration	Simplex
End Connection Type	Female NPT and Flanges
Flow Rate	100 GPM
Pipe Size	2 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	FLV Series Bag Filters
Sub Category	Bag Filters & Bags
Subtype	Bag Filters & Bags
Type	Hayward Filtration® & Straining
Vessel Length	Single Length
