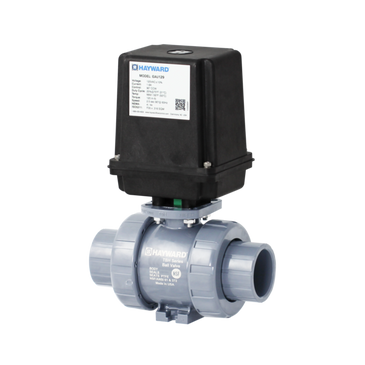

EAUTBH220STV | Actuated 2" CPVC TU Ball Valve w/FPM seals, socket/threaded ends, 115 VAC EAU Actuator w/one terminal strip & aux. limit switch included | Hayward
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EAUTBH220STV
Documents and manuals
Hayward EAUTBH220STV Documents
Overview
Details for EAUTBH220STV
Actuated 2" CPVC TU Ball Valve w/FPM seals, socket/threaded ends, 115 VAC EAU Actuator w/one terminal strip & aux. limit switch included
Hayward Flow Control’s industry leading actuation offering and service is now quicker than ever before. By maximizing our LEAN production model and full scale US manufacturing base, Hayward can get your system up and running when it has to. Get any one of the selected automated ball and butterfly valve packages shipped out to you within one business day of ordering.That simple. That easy
VALVE FEATURES• System2TM Sealing Technology for longer life cycle
• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full
pressure rating
• Consistent operating torque with adjustment-free
design
• ISO mounting flange
• Permanent markings, eliminates labels
• Integral footpad for skid or panel mount
• FPM or EPDM seals
• Double O-Ring stem seals
• Easy replacement for existing Hayward TB Series
• NSF / ANSI 61 and NSF / ANSI 372 listed
ACTUATOR FEATURES
• UL/CSA Listed Motor
• GFPP NEMA 4 / 4X Enclosure
• 2.5 Second, 90° Cycle Time
• Permanently Lubricated Gear Train
• Actuator Brake
• 90 or 180° Operation
• Unidirectional, Not Reversing
• Terminal Block Connections
• Standard 120 VAC
• End of Travel Dry Contact Limit Switch
• Thermal Overload Protection
• Lightweight, Compact and Inexpensive
Specifications
Item Number | EAUTBH220STV |
Brand | Hayward |
Actuator Series | EAU1 Series Electronic Actuators |
Actuator Type | Electric |
Category | Actuated Valves |
Category | N/A |
Class | N/A |
Control | 0°-90°-180° |
Cv Coefficient | 150 |
Cv Coefficient | 150.0000 |
Cycle Speed Sec 60hz Dc | 2.5 sec |
Duty Cycle | 25% |
Enclosure Material | Polypropylene |
Enclosure | NEMA4/4X |
End Connection Type | Socket/Threaded |
End Connection | Socket/Threaded |
Housing Material | GFPP |
Material | CPVC Body / CPVC Standard Ball |
Method of Operation | Actuated |
O-Ring Material | FPM |
Operating Pressure [Max] | 250 psi |
Operation | On / Off |
Phase | Single Phase |
Pipe Size | 2 in |
Power Type | AC/DC |
Pressure Rating | 250 PSI |
Sealing Material | FPM |
Seat Material | PTFE |
Series | Hayward QuikShip Automated Valves |
Size | 2" |
Standard Voltage | 120VAC |
Sub Category | N/A |
SubCategory | Actuated True Union Ball Valve |
SubCategory | EAU1 Series Automated With TBH True Union Ball Valves |
Subtype | Automated Valves |
Torque Rating | 120 in/lbs |
Type | Thermoplastic Valves |
Valve Material | CPVC |
Valve Series | TBH Series True Union Ball Valves |
Valve Type | Ball |
Voltage | 120 VAC |
