CFLV4P2S20S1V | 2" Double Length Cartridge Filter Vessel, FPM Seals, Socket PVC Ends | Hayward
Overview
Details for CFLV4P2S20S1V

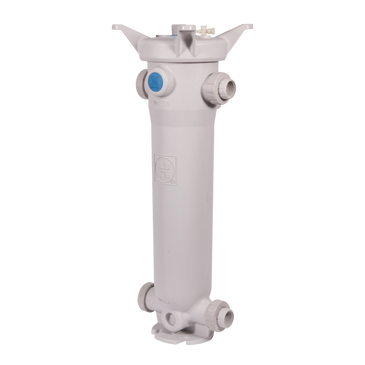

2" Double Length Cartridge Filter Vessel, FPM Seals, Socket PVC Ends
Hayward offers a complete of range cartridge filters in multiple thermoplastic materials. Haywards CFLV Series in Platinum GF-PP (glass filled Polypropylene) for single or multiple (5) cartridges, featuring a one-piece injection molded Platinum GFPP, flexible true-union end design, and sizes from 2" to 4"/DN50 – DN100 with socket, threaded, fusion and flanged end connections. Available in Simplex and Duplex assemblies and others assemblies upon request. The FLT Series now provides corrosion resistant solutions for low flow and tight space requirements in PVC and CPVC materials. Also available from Hayward, a complete range of pleated cartridges in multiple micron ratings and materials.
• Platinum Glass Filled Polypropylene• One-Piece Injection Molded Construction
• Allows for Single 7" or Multiple (5) 2-1/2" Cartridges
• Ideal for Pleated, Meltblown or Spin Wounded Cartridges
• True Union Design with Multiple End Connection Options
• Hand Removable Ergonomic Cover with Liquid Displacing Dome
• Vent Valve on Cover
• In-Line or Loop Configuration
• Drain Port at Bottom
• Integral Mounting Base
Specifications
Item Number | CFLV4P2S20S1V |
Brand | Hayward |
Body End Connector Material | GFPP / PVC |
Category | Filters |
Class | CFLV Series Cartridge Filters |
Configuration | Simplex |
End Connection Type | Socket |
Flow Rate | 100 GPM |
Pipe Size | 2 in |
Pressure Rating | 150 PSI |
Sealing Material | FPM |
Series | CFLV Series Cartridge Filters |
Sub Category | Cartridge Filers & Cartridges |
Subtype | Cartridge Filters & Cartridges |
Type | Hayward Filtration® & Straining |
Vessel Length | Double Length |
