CFLV4P1S20F4V | 2" Flanged GFPP Single Length Cartridge Filter Vessel | Hayward

Brand: HaywardSKU: CFLV4P1S20F4V

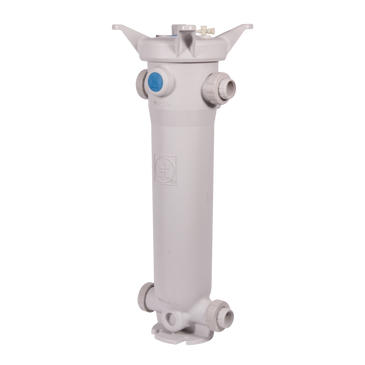

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CFLV4P1S20F4V

Jump to: Overview & Specifications Reviews

Overview Details for CFLV4P1S20F4V

2" Flanged GFPP Single Length Cartridge Filter Vessel

Hayward offers a complete of range cartridge filters in multiple thermoplastic materials. Haywards CFLV Series in Platinum GF-PP (glass filled Polypropylene) for single or multiple (5) cartridges, featuring a one-piece injection molded Platinum GFPP, flexible true-union end design, and sizes from 2" to 4"/DN50 – DN100 with socket, threaded, fusion and flanged end connections. Available in Simplex and Duplex assemblies and others assemblies upon request. The FLT Series now provides corrosion resistant solutions for low flow and tight space requirements in PVC and CPVC materials. Also available from Hayward, a complete range of pleated cartridges in multiple micron ratings and materials.

• Platinum Glass Filled Polypropylene
• One-Piece Injection Molded Construction
• Allows for Single 7" or Multiple (5) 2-1/2" Cartridges
• Ideal for Pleated, Meltblown or Spin Wounded Cartridges
• True Union Design with Multiple End Connection Options
• Hand Removable Ergonomic Cover with Liquid Displacing Dome
• Vent Valve on Cover
• In-Line or Loop Configuration
• Drain Port at Bottom
• Integral Mounting Base

Specifications

Item Number	CFLV4P1S20F4V
Brand	Hayward
Body End Connector Material	GFPP / GFPP
Category	Filters
Class	CFLV Series Cartridge Filters
Configuration	Simplex
End Connection Type	Flanged
Flow Rate	100 GPM
Pipe Size	2 in
Pressure Rating	150 PSI
Sealing Material	FPM
Series	CFLV Series Cartridge Filters
Sub Category	Cartridge Filers & Cartridges
Subtype	Cartridge Filters & Cartridges
Type	Hayward Filtration® & Straining
Vessel Length	Single Length
