BYCN1030E1LGB | 3" Butterfly Valve PVC Body PVC Disc w/EPDM Liner Lever Operator | Hayward

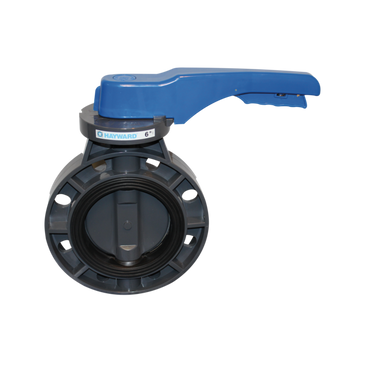

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BYCN1030E1LGB
Overview
Details for BYCN1030E1LGB
3" Butterfly Valve PVC Body PVC Disc w/EPDM Liner Lever Operator
Key Features
- NSF/ANSI 61 Listed
- Wafer Body Design
- Fits ANSI 125 or PN10 Flange Patterns
- PVC Body with PVC Disc
- 316 Grade Stainless Steel Stem
- EPDM Booted Seat
- ISO 5211 Mounting Pad
- 9 Position Throttle Plate
- Standard Lockout Handlever
Benefits
- High Flow Capacity
- Low Pressure Drop
Options
- Gear Operators
- Electric or Pneumatic Actuators
Typical Applications
- Potable Water Systems /Commercial Plumbing
- Pools, Water/Theme Parks and Aquariums
- Food and Beverage
- Water and Wastewater Treatment
- Chemical Processing
Materials
- PVC Cell Class 12454 per ASTM D1784
- EPDM Liner and Seals
BYCN Pure-Blu™ and BYC Sure-Tuff™ Series Butterfly Valve sizes 2 in. to 8 in. PVC Body and PVC Disc only. All liners and seals are EPDM. BYCN Pure-Blu™ includes Type 316 Stainless Steel Shaft. BYCN Pure-Blu™ and BYC Sure-Tuff™ butterfly valves are offered with a lever handle or a gearbox.
• Distinctive Ergonomic Handle with Lockout Feature• Wafer Body Design
• Fits ANSI 150 or PN10 Flange Patterns
• PVC Body with PVC Disc
• One-Piece Stainless Steel Stem 316 Grade for BYCN/410 Grade for BYCS
• ISO 5211 Mounting Pad
• NSF / ANSI-61 and NSF / ANSI 372 Listed (BYCN Series)
Specifications
Item Number | BYCN1030E1LGB |
Brand | Hayward |
Body Material Type | BYCN Pure-Blu™ PVC Body |
Category | Thermoplastic Valves |
Class | BYCS/BYCN Series Butterfly Valves |
Cv Coefficient | 300.0000 |
Disc Material | PVC Disc |
Liner Material | EPDM |
Operation Type | Lever Operated |
Pipe Size | 3 in |
Pressure Rating | 150 PSI |
Sealing Material | EPDM |
Series | BYCN BYCS Series Butterfly Valves |
Sub Category | Butterfly Valves |
Subtype | Butterfly Valves |
Type | Thermoplastic Valves |
