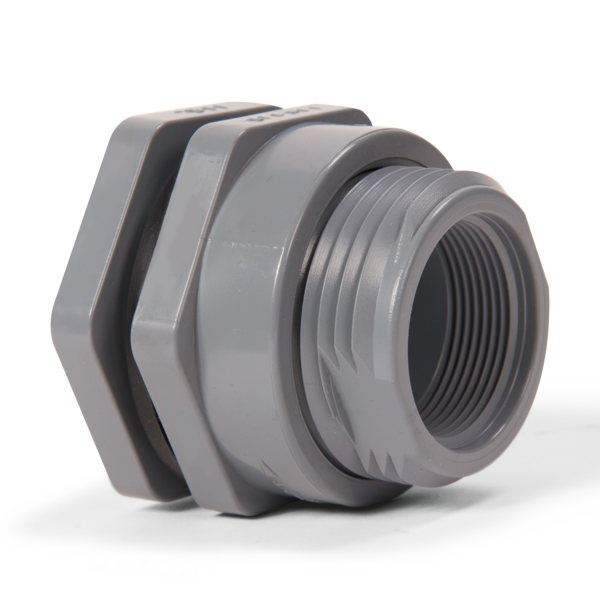

BFA2060TFS | 6" CPVC Bulkhead Fitting w/FPM standard flange gasket; threaded x threaded end connections | Hayward

Hayward | BFA2060TFS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BFA2060TFS

Documents and manuals

Hayward BFA2060TFS Documents

Overview

Details for BFA2060TFS

6" CPVC Bulkhead Fitting w/FPM standard flange gasket; threaded x threaded end connections

BFA Series bulkhead fittings offer short pattern as well as longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC, PP and GFPP. Gaskets are FPM or EPDM. Large flange models available.

• Available in PVC, CPVC and PP in Long Pattern, PVC, CPVC, PP and GFPP in Short Pattern
• Extra Long Design for Thick Tank Walls
• Left-Hand Threads
• Rated at 150 PSI
• FPM or EPDM Gasket Seal
• Hex Body for One-Person Installation
• Full Buttress Threads
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number BFA2060TFS
Brand Hayward
A - Across Flats 12.00 in
B 8.00 in
Body Material CPVC
C - Installation Hole Size 8.06 in
Category Bulkhead Fittings
Class BFA Series Bulkhead Fittings
D - Across Flats 12.00 in
E - Gasket Thickness 0.31 in
End Connection Type Threaded/Threaded
End Connection Threaded x Threaded
Material CPVC
Model Long Pattern - Standard Flange
Pipe Size 6 in
Pressure Rating 150 PSI
Sealing Material FPM
Seals FPM
Series BFA Series Bulkhead Fittings
Size 6"
Sub Category Bulkhead Fittings
SubCategory BFA Series Bulkhead Fittings - Long Length with Standard Flange
Subtype Bulkhead Fittings
Type Bulkhead Fittings & Tank Accessories
